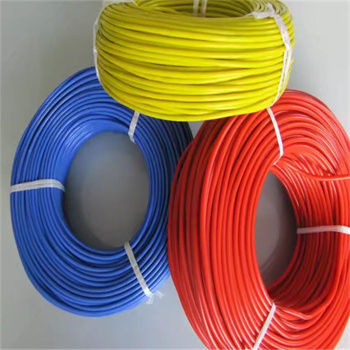

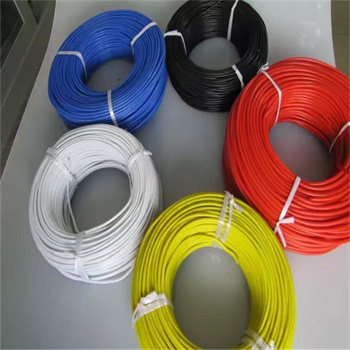

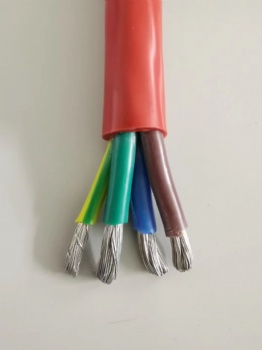

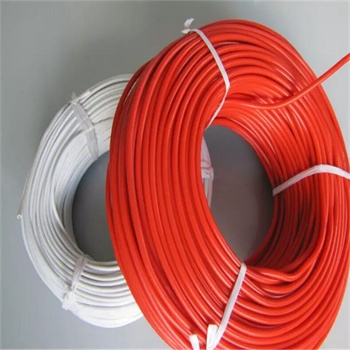

Tinned or Sliver-plated or Nickel Copper FEP insulation high temperature cable

DETAILS

Nominal Voltage: 300V

Temperature Range: -100 Degree~+150 Degree

O. D. Tolerance: ± 0.15mm

Testing Volta: 2000V

UL Approval

Conductor: Tinned or Sliver-plated or Nickel Copper

Insulator: FEP

Colours: Whit-bule-red-black-brown-yello-wgreen-yellow/green-transparent

They are the same with then inner fixed wires for Home Electric applinaces, Lighthing equipments, mechanical electrical machines

Tinned or Sliver-plated or Nickel Copper FEP insulation high temperature cable

AWG	Condutor Construction (mm)	Insulation Thickness (mm)	Outer Diameter (mm）	Max.Condutor Resistance DC20℃ （Ω/km）	Packing (m)
16	19×0.30	0.41	2.32	14.6	305
17	19×0.26	0.41
18	19×0.23	0.41	1.97	23.2	305
20	19×0.19	0.41
20	1×0.80	0.41	1.62	35.2	305
22	19×0.16	0.41
22	1×0.65	0.41	1.47	56.4	610
24	7×0.20	0.41
24	1×0.50	0.41	1.32	89.3	610
26	7×0.16	0.41
26	1×0.40	0.41	1.22	143	610
28	7×0.12	0.41
28	1×0.32	0.41	1.14	227	610
30	7×0.10	0.41
30	1×0.254	0.41	1.074	361	610
32	7×0.08	0.41	1.06	664.8	610
32	1×0.20	0.41	1.02	588.3	610
