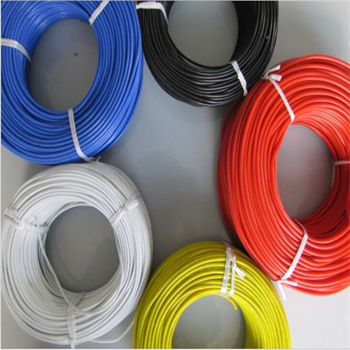

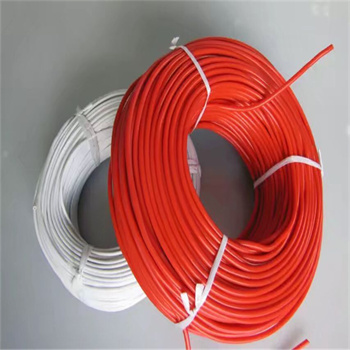

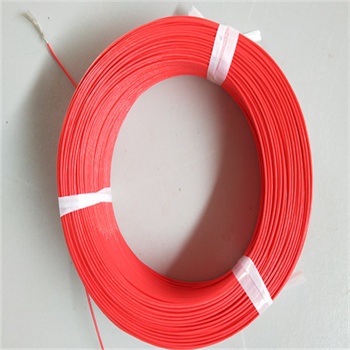

UL1330 Teflon Insulated Lead wires for Home electric Appliances, lightings, electronic equipment and sensors

DETAILS

Technical Data:

Nominal voltage: 600V

Temperature Range: -100° C~+200 ° C

O. D. Tolerance: ± 0.10 mm

Testing Voltage: 2500v

Conductor: Tinned Copper

Insulator: FEP

Colours: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green

Use: Lead wires for Home electric Appliances, lightings, electronic equipment and sensors etc.

UL1330 Teflon Insulated Lead wires for Home electric Appliances, lightings, electronic equipment and sensors

AWG	Condutor Construction (mm)	Insulation Thickness (mm)	Outer Diameter (mm）	Max.Condutor Resistance DC20℃ （Ω/km）	Packing (m)
10	37×0.43	0.51	4.03	3.546	305
12	19×0.49	0.51	3.47	5.64	305
14	19×0.37	0.51	2.87	8.96	305
16	19×0.30	0.51	2.52	14.6	305
17	19×0.26	0.51	2.32	18.3	305
18	19×0.23	0.51	2.17	23.2	305
20	19×0.20	0.51	1.97	36.7	305
20	1×0.80	0.51	1.82	35.2	305
22	19×0.16	0.51	1.82	59.4	610
22	1×0.65	0.51	1.67	56.4	610
24	7×0.20	0.51	1.62	94.2	610
24	1×0.50	0.51	1.52	89.3	610
26	7×0.16	0.51	1.50	150	610
26	1×0.40	0.51	1.42	143	610
28	7×0.12	0.51	1.38	239	610
28	1×0.32	0.51	1.34	227	610
30	7×0.10	0.51	1.32	381	610
30	1×0.254	0.51	1.274	361	610
