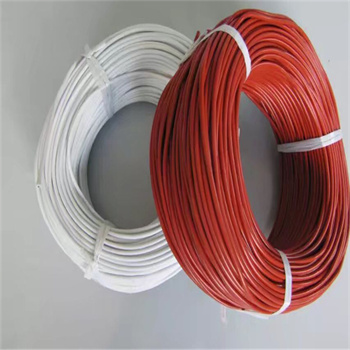

UL1577 Tinned Copper FEP WIRE 200degree

Sent E-mail INQUIRY

DETAILS

TECNICAL DATA

Insulation:FEP

Condutor:Tinned Copper

Temperature range:-80℃~+200℃

Rated Voltage:No Request

O.D.Tolerance: ±0.1mm

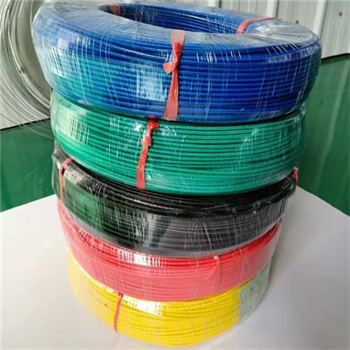

Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green

Application

Used for home appliance,lighting lamps(cold light source)，small motors,temperature sensors,electromagnetic coils,automotive interior cables,electronic appliances,etc.

UL1577 Tinned Copper FEP WIRE 200degree

AWG	Condutor Construction (mm)	Insulation Thickness (mm)	Outer Diameter (mm）	Max. Condutor Resistance DC20℃ （Ω/km）	Packing (m)
16	19×0.30	0.31	2.12	14.6	305
17	19×0.26	0.31	1.92	18.3	305
18	19×0.23	0.31	1.77	23.2	305
20	19×0.20	0.31	1.57	36.7	305
20	1×0.80	0.31	1.42	35.2	305
22	19×0.16	0.31	1.42	59.4	610
22	1×0.65	0.31	1.27	56.4	610
24	7×0.20	0.31	1.22	94.2	610
24	1×0.50	0.31	1.12	89.3	610
26	7×0.16	0.31	1.10	150	610
26	1×0.40	0.31	1.02	143	610
28	7×0.12	0.31	0.98	239	610
28	1×0.32	0.31	0.94	227	610
30	7×0.10	0.31	0.92	381	610
30	1×0.254	0.31	0.874	361	610
32	7×0.08	0.31	0.86	664.8	610
32	1×0.20	0.31	0.82	588.3	610
