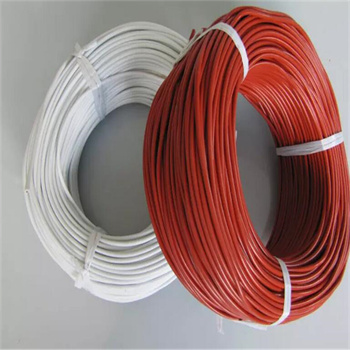

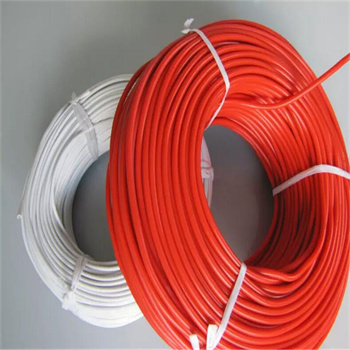

UL1332/1333Tinned Copper FEP WIRE 200degree

Sent E-mail INQUIRY

DETAILS

TECNICAL DATA

Insulation:FEP

Condutor:Tinned Copper

Temperature range:-80℃~+200℃/+150℃

Rated Voltage:300V

O.D.Tolerance: ±0.1mm

Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green

Application

Used for home appliance,lighting lamps(cold light source)，small motors,temperature sensors,electromagnetic coils,automotive interior cables,electronic appliances,etc.

UL 1332/1333Tinned Copper FEP WIRE 200degree

AWG	Condutor Construction (mm)	Insulation Thickness (mm)	Outer Diameter (mm）	Max. Condutor Resistance DC20℃ （Ω/km）	Packing (m)
10	37×0.43	0.33	3.67	3.546	305
12	19×0.49	0.33	3.11	5.64	305
14	19×0.37	0.33	2.51	8.96	305
16	19×0.30	0.33	2.16	14.6	305
17	19×0.26	0.33	1.96	18.3	305
18	19×0.23	0.33	1.81	23.2	305
20	19×0.20	0.33	1.61	36.7	305
20	1×0.80	0.33	1.46	35.2	305
22	19×0.16	0.33	1.46	59.4	610
22	1×0.65	0.33	1.31	56.4	610
24	7×0.20	0.33	1.26	94.2	610
24	1×0.50	0.33	1.16	89.3	610
26	7×0.16	0.33	1.14	150	610
26	1×0.40	0.33	1.06	143	610
28	7×0.12	0.33	1.02	239	610
28	1×0.32	0.33	0.98	227	610
30	7×0.10	0.33	0.96	381	610
30	1×0.254	0.33	0.914	361	610
