UL1887/1901 Tinned Copper FEP WIRE 200degree
TECNICAL DATA
Insulation:FEP
Condutor:Tinned Copper
Temperature range:-80℃~+150℃/+200℃
Rated Voltage:600V
O.D.Tolerance: ±0.1mm

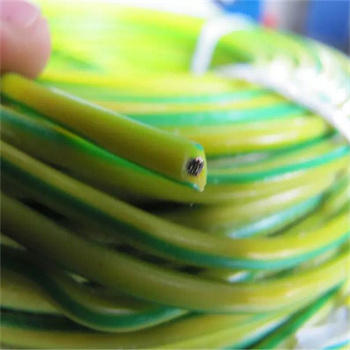

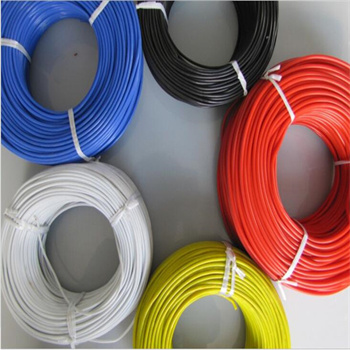

Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Application
Used for home appliance,lighting lamps(cold light source)，small motors,temperature sensors,electromagnetic coils,automotive interior cables,electronic appliances,etc.
UL1887/1901 Tinned Copper FEP WIRE 200degree
AWG | Condutor Construction (mm) | Insulation Thickness (mm) | Outer Diameter (mm） | Max.Condutor Resistance DC20℃ （Ω/km） | Packing (m) |
10 | 37×0.43 | 0.36 | 3.73 | 3.546 | 305 |
12 | 19×0.49 | 0.36 | 3.17 | 5.64 | 305 |
14 | 19×0.37 | 0.36 | 2.57 | 8.96 | 305 |
16 | 19×0.30 | 0.36 | 2.22 | 14.6 | 305 |
17 | 19×0.26 | 0.36 | 2.02 | 18.3 | 305 |
18 | 19×0.23 | 0.36 | 1.87 | 23.2 | 305 |
20 | 19×0.19 | 0.36 | 1.67 | 36.7 | 305 |
1×0.80 | 0.36 | 1.52 | 35.2 | 305 | |
22 | 19×0.16 | 0.36 | 1.52 | 59.4 | 610 |
1×0.65 | 0.36 | 1.37 | 56.4 | 610 | |
24 | 7×0.20 | 0.36 | 1.32 | 94.2 | 610 |
1×0.50 | 0.36 | 1.22 | 89.3 | 610 | |
26 | 7×0.16 | 0.36 | 1.20 | 150 | 610 |
1×0.40 | 0.36 | 1.12 | 143 | 610 | |
28 | 7×0.12 | 0.36 | 1.08 | 239 | 610 |
1×0.32 | 0.36 | 1.04 | 227 | 610 | |
30 | 7×0.10 | 0.36 | 1.02 | 381 | 610 |
1×0.254 | 0.36 | 0.974 | 361 | 610 |
