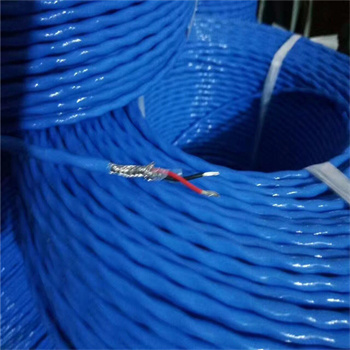

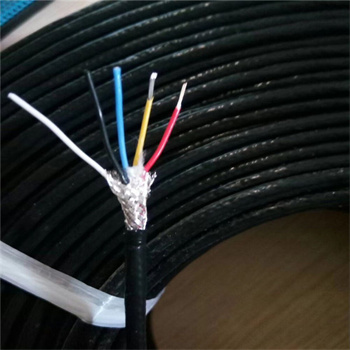

AFPF multi core FEP Teflon Insulated Shielded Wire cable

DETAILS

Insulation Teflon

Conductor Silver or Tinned Copper

Temperature Range -60ºC~+250ºC

Rated Voltage 300/500V

O.D.Tolerance ±0.1mm

Colour White-Blue-Red-Black-Brown-Yellow-Green-Transpanrent-Yellow/Green

Used for various electric machineries,electronic ceramics,heating parts,car lights,lighting,ballast etc.

AFPF multi core FEP Teflon Insulated Shielded Wire cable

Core number Section (mm2)	Conductor Construction	Insulation(mm)		Jacket(mm）		Max.Conductor Resistance DC20℃(Ω/㎞)
Core number Section (mm2)	Conductor Construction	Thickness	Outer Diameter	Thickness	Outer Diameter	Max.Conductor Resistance DC20℃(Ω/㎞)
1×0.12	7/0.15	0.20	0.85	0.20	1.70	150
1×0.2	7/0.20	0.20	1.0	0.20	1.90	83.5
2×0.12	7/0.15	0.20	0.85	0.25	2.70	150
3×0.12	7/0.15	0.20	0.85	0.25	2.70	150
4×0.12	7/0.15	0.20	0.85	0.25	3.0	150
2×0.2	7/0.20	0.20	1.0	0.25	2.90	83.5
3×0.2	7/0.20	0.20	1.0	0.25	3.00	83.5
4×0.2	7/0.20	0.20	1.0	0.30	3.50	83.5
2×0.35	19/0.16	0.25	1.30	0.25	3.50	49.5
3×0.35	19/0.16	0.25	1.30	0.25	3.60	49.5
4×0.35	19/0.16	0.25	1.30	0.30	4.25	49.5
2×0.5	19/0.18	0.25	1.40	0.25	3.80	36.0
3×0.5	19/0.18	0.25	1.40	0.25	3.90	36.0
4×0.5	19/0.18	0.25	1.40	0.30	4.60	36.0
2×0.75	19/0.23	0.25	1.70	0.30	4.60	22.7
3×0.75	19/0.23	0.25	1.70	0.40	4.80	22.7
4×0.75	19/0.23	0.25	1.70	0.40	5.50	22.7
2×1	19/0.26	0.25	1.80	0.30	4.70	19
3×1	19/0.26	0.25	1.80	0.35	4.80	19
4×1	19/0.26	0.25	1.80	0.40	5.60	19
2×1.5	19/0.32	0.30	2.25	0.40	5.80	11.7
3×1.5	19/0.32	0.30	2.25	0.40	6.0	11.7
4×1.5	19/0.32	0.30	2.25	0.40	6.80	11.7
