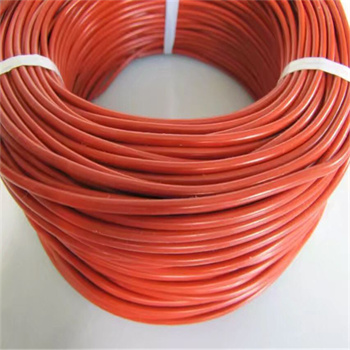

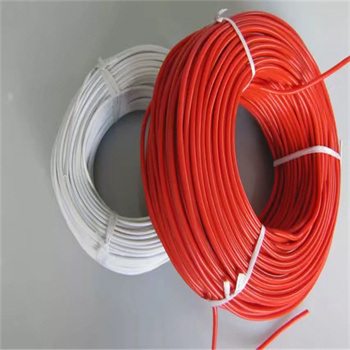

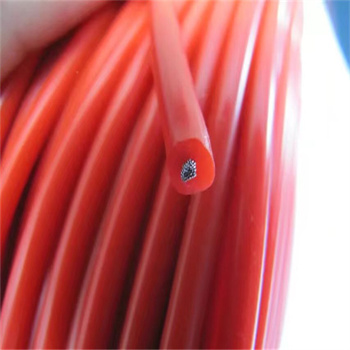

Stranded Tinned Copper High Temp. PFA FEP Wire Electric Appliances

DETAILS

Application:

Aerospace field,Electronic industry, Internal wiring of electric motor,electric appliance,instrument with rated voltage 600V

and below.

It can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance

wire and fire-resist wire;Household appliances industry, It can be used in air-conditioning equipment, micro-wave oven,

electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their

inner wire and so on.

Product features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance,

strong alkali-resistance,

oxidant-resistance and so on.Bear the good electric insulated capability, high voltage-resist,moisture-resistance,

high insulation resistance;Flame-retardant, Anti-ageing, long age of usage

Rated voltage:600V and below
Test of power-frequency withstand voltage:3000V
Temperature range:-65~+250ºC

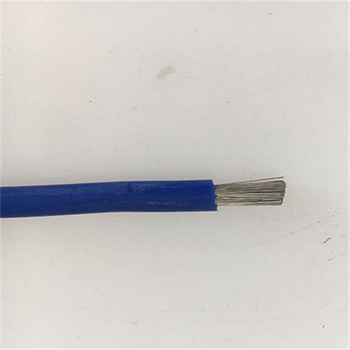

Conductor: Tinned copper or Silver-plated copper
Insulation: FEP, PFA , PTFE according to customer's request

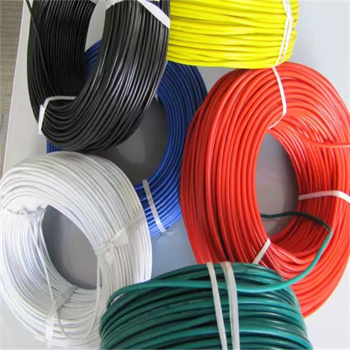

Color:Red yellow blue green white black orange purple brown

Stranded Tinned Copper High Temp. PFA FEP Wire Electric Appliances
Conductor			Insulation		Over		Packing
Conductor			Insulation		Diameter		Ft/Roll
AWG	No./mm	Out.Dia.	Avr.Thick.	Min.Thick.	average	tolerance
AWG	No./mm	mm	mm	mm	mm	mm
20	19/0.19	0.95	0.15	0.10	1.25	±0.10	2000
22	19/0.15	0.75	0.15	0.10	1.05	±0.10	2000
24	7/0.20	0.61	0.15	0.10	0.91	±0.10	2000
26	7/0.16	0.48	0.15	0.10	0.78	±0.10	2000
28	7/0.127	0.38	0.15	0.10	0.68	±0.10	2000
30	7/0.10	0.30	0.15	0.10	0.60	±0.10	2000
32	7/0.08	0.24	0.15	0.10	0.54	±0.10	2000
