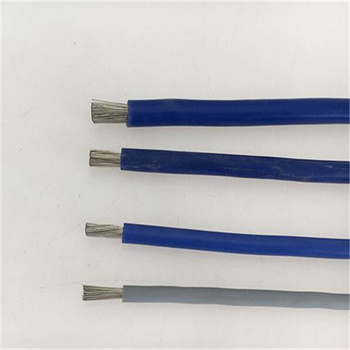

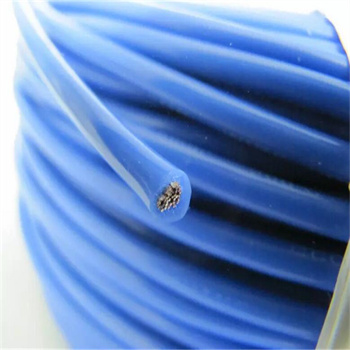

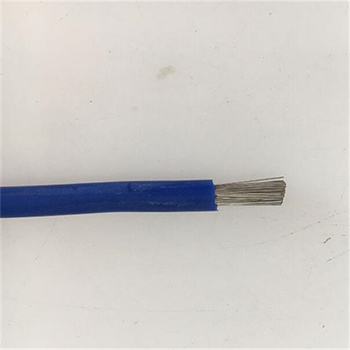

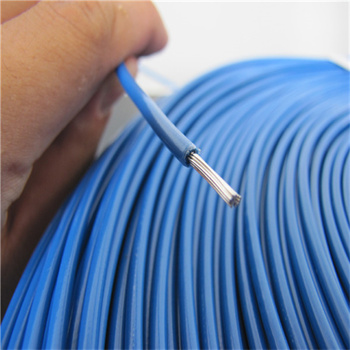

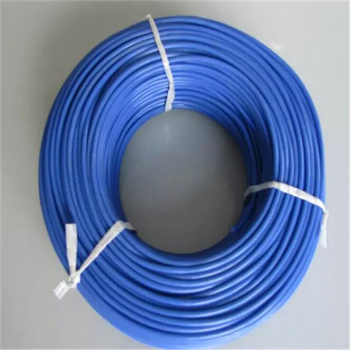

Anticorrosion application High temperature Resistant PTFE Teflon Wire Cable

DETAILS

Application:
Aerospace field,Electronic industry, Internal wiring of electric motor,electric appliance,instrument with rated voltage 600V and below.It can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and fire-resist wire;Household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.

Product features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on.Bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance;Flame-retardant, Anti-ageing, long age of usage

Rated voltage:600V and below
Test of power-frequency withstand voltage:3000V
Temperature range:-65~+250ºC
Conductor: Tinned copper or Silver-plated copper
Insulation: FEP, PFA , PTFE according to customer's request
Color:Red yellow blue green white black orange purple brown

Technical Specification List (You can also customize your specification)

Conductor Nominal Section (mm2)	Conductor Construction (No/mm)	Average. Insulation Thickness (mm)	Calculated. Outer Diameter (mm)	D.C.Conductor resistance at 20ºC(Ω/km)
Conductor Nominal Section (mm2)	Conductor Construction (No/mm)	Average. Insulation Thickness (mm)	Calculated. Outer Diameter (mm)	Tinned copper	Silver coated copper
0.035	7/0.08	0.20	0.64	562	550
0.05	10/0.08	0.30	0.90	383	370
0.06	7/0.10	0.30	0.90	348	339
0.08	7/0.12	0.30	0.96	286	280
0.10	7/0.14	0.30	1.02	157	150
0.12	7/0.15 30/0.07	0.30	1.05	152	145
0.14	7/0.16 19/0.10	0.30	1.08	136	130
0.15	30/0.08	0.30	1.10	111	105
0.20	7/0.02 19/0.12	0.30	1.20	87	82
0.35	19/0.16	0.30	1.40	57	54
0.50	19/0.18	0.30	1.50	40	37.5
0.80	19/0.23	0.32	1.79	24	23
1.00	19/0.26	0.35	2.00	21	20
1.20	19/0.28	0.45	2.30	19	18
1.50	19/0.32	0.45	2.50	13	12
2.00	19/0.37	0.45	2.75	10	9
2.50	37/0.30	0.55	3.20	8	7
3.00	37/0.32	0.68	3.60	6.8	6.4
