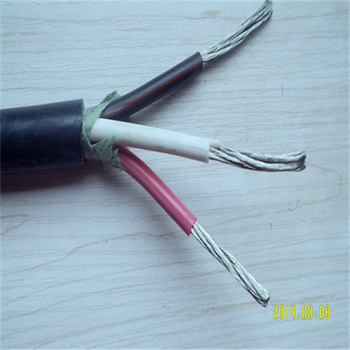

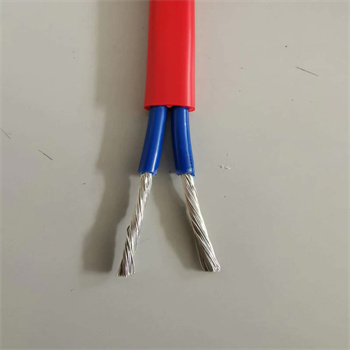

AFF TEFLON HIGH TEMPERATURE WIRE

DETAILS

TECHNICAL DATA

Jacket:FEP,PTFE/PFA

Insulator: FEP,PTFE/PFA

Conductor:Tinned or Silver Copper

Temperature Range:-60℃~+200℃/250℃

Rated Voltage:300V/500V

O.D.Tolerance: ±0.1mm

Colour:White-Blue-red-Black-Yellow-Green-Transparent-Yellow/Green

Used at AC rated voltage 300V/500V or below with various movable electric

machines,steel plant,aviation,power plant pertrochemical industry and outdoor lighting of high temperature area.

AFF TEFLON HIGH TEMPERATURE WIRE

Corenumber Section (mm2)	Conductor Construction	Insulation (mm)		Jacket(mm）		Max.Conductor Resistance DC20℃(Ω/㎞)
Corenumber Section (mm2)	Conductor Construction	Thickness	Outer Diameter	Thickness	Outer Diameter	Max.Conductor Resistance DC20℃(Ω/㎞)
2×0.35	19/0.16	0.25	1.30	0.25	3.10	49.5
3×0.35	19/0.16	0.25	1.30	0.25	3.20	49.5
4×0.35	19/0.16	0.25	1.30	0.25	3.65	49.5
5×0.35	19/0.16	0.25	1.30	0.30	4.10	49.5
6×0.35	19/0.16	0.25	1.30	0.30	4.50	49.5
7×0.35	19/0.16	0.25	1.30	0.30	4.50	49.5
2×0.5	19/0.18	0.25	1.40	0.25	3.30	36.0
3×0.5	19/0.18	0.25	1.40	0.25	3.40	36.0
4×0.5	19/0.18	0.25	1.40	0.30	4.0	36.0
5×0.5	19/0.18	0.25	1.40	0.30	4.40	36.0
6×0.5	19/0.18	0.25	1.40	0.30	4.80	36.0
7×0.5	19/0.18	0.25	1.40	0.30	4.80	36.0
2×0.75	19/0.23	0.25	1.70	0.30	4.0	22.7
3×0.75	19/0.23	0.25	1.70	0.30	4.0	22.7
4×0.75	19/0.23	0.25	1.70	0.30	4.70	22.7
5×0.75	19/0.23	0.25	1.70	0.35	5.30	22.7
6×0.75	19/0.23	0.25	1.70	0.35	5.80	22.7
7×0.75	19/0.23	0.25	1.70	0.35	5.80	22.7
2×1	19/0.26	0.25	1.80	0.30	4.20	19.0
3×1	19/0.26	0.25	1.80	0.35	4.30	19.0
4×1	19/0.26	0.25	1.80	0.35	5.10	19.0
5×1	19/0.26	0.25	1.80	0.35	5.60	19.0
6×1	19/0.26	0.25	1.80	0.40	6.20	19.0
7×1	19/0.26	0.25	1.80	0.40	6.20	19.0
2×1.5	19/0.32	0.30	2.25	0.35	5.20	11.7
3×1.5	19/0.32	0.30	2.25	0.35	5.30	11.7
4×1.5	19/0.32	0.30	2.25	0.40	6.20	11.7
5×1.5	19/0.32	0.30	2.25	0.40	6.80	11.7
6×1.5	19/0.32	0.30	2.25	0.40	7.50	11.7
7×1.5	19/0.32	0.30	2.25	0.40	7.60	11.7
