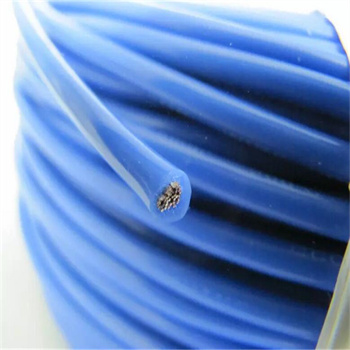

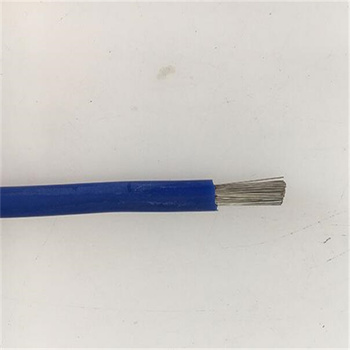

AFT 250 Silver or Nickel Copper Condutor PTFE WIRE 250degree

DETAILS

TECNICAL DATA

Insulation: PTFE

Condutor: Silver or Nickel Copper

Temperature range:-80℃~+250℃

Rated Voltage:600V

O.D.Tolerance: ±0.1mm

Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green

Application

used for oil equipment,electric machinery, automotive cables,outdoor lighting,PTC thermistors,electronic components,etc.

AFT 250 Silver or Nickel Copper Condutor PTFE WIRE 250degree

Sectional Area (mm²)	Condutor Construction (mm)	Insulation Thickness (mm)	Outer Diameter (mm）	Max. Condutor Resistance DC20℃ （Ω/km	Packing (m)
0.05	7/0.10	0.18	0.66	376.2	500
0.08	7/0.12	0.25	0.86	245.0	500
0.15	7/0.16	0.25	0.95	126.0	500
0.20	7/0.20	0.25	1.10	83.5	200
0.35	19/0.16	0.30	1.40	49.5	200
0.50	19/0.18	0.35	1.60	36.0	200
0.75	19/0.23	0.35	1.85	22.7	200
1.0	19/0.26	0.35	2.00	19.0	200
1.20	19/0.28	0.40	2.20	15.3	200
1.50	19/0.32	0.40	2.40	11.7	200
2.0	19/0.37	0.45	2.75	9.45	100
2.5	19/0.41	0.50	3.15	6.86	100
4.0	37/0.37	0.55	3.58	4.51	100
