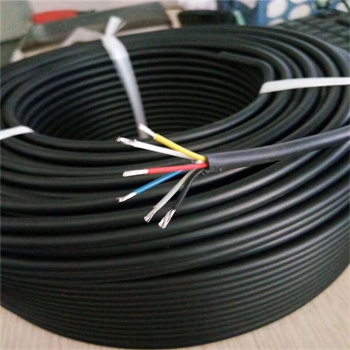

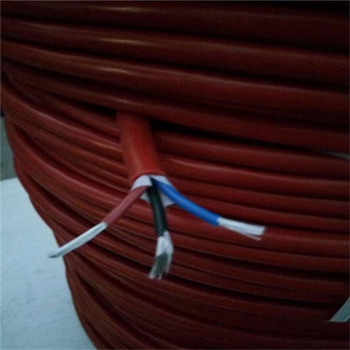

AFPF Teflon HIGH TEMPERATURE CABLE
TECHNICAL DATA
Jacket:FEP/PFA Teflon
Insulator:FEP/PFA Teflon
Conductor:Tinned or Silver Copper
Temperature Range:-60℃~+200℃/250℃
Rated Voltage:300V/500V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-red-Black-Yellow-Green-Transparent-Yellow/Green
Used for temperature sensors, aviation, electric machinery,power plant etc.
AFPF Teflon HIGH TEMPERATURE CABLE
Core number Section (mm2) | Conductor Construction | Insulation(mm) | Jacket(mm） | Max.Conductor Resistance DC20℃(Ω/㎞) | ||
Thickness | Outer Diameter | Thickness | Outer Diameter | |||
1×0.12 | 7/0.15 | 0.20 | 0.85 | 0.20 | 1.70 | 150 |
1×0.2 | 7/0.20 | 0.20 | 1.0 | 0.20 | 1.90 | 83.5 |
2×0.12 | 7/0.15 | 0.20 | 0.85 | 0.25 | 2.70 | 150 |
3×0.12 | 7/0.15 | 0.20 | 0.85 | 0.25 | 2.70 | 150 |
4×0.12 | 7/0.15 | 0.20 | 0.85 | 0.25 | 3.0 | 150 |
2×0.2 | 7/0.20 | 0.20 | 1.0 | 0.25 | 2.90 | 83.5 |
3×0.2 | 7/0.20 | 0.20 | 1.0 | 0.25 | 3.00 | 83.5 |
4×0.2 | 7/0.20 | 0.20 | 1.0 | 0.30 | 3.50 | 83.5 |
2×0.35 | 19/0.16 | 0.25 | 1.30 | 0.25 | 3.50 | 49.5 |
3×0.35 | 19/0.16 | 0.25 | 1.30 | 0.25 | 3.60 | 49.5 |
4×0.35 | 19/0.16 | 0.25 | 1.30 | 0.30 | 4.25 | 49.5 |
2×0.5 | 19/0.18 | 0.25 | 1.40 | 0.25 | 3.80 | 36.0 |
3×0.5 | 19/0.18 | 0.25 | 1.40 | 0.25 | 3.90 | 36.0 |
4×0.5 | 19/0.18 | 0.25 | 1.40 | 0.30 | 4.60 | 36.0 |
2×0.75 | 19/0.23 | 0.25 | 1.70 | 0.30 | 4.60 | 22.7 |
3×0.75 | 19/0.23 | 0.25 | 1.70 | 0.40 | 4.80 | 22.7 |
4×0.75 | 19/0.23 | 0.25 | 1.70 | 0.40 | 5.50 | 22.7 |
2×1 | 19/0.26 | 0.25 | 1.80 | 0.30 | 4.70 | 19 |
3×1 | 19/0.26 | 0.25 | 1.80 | 0.35 | 4.80 | 19 |
4×1 | 19/0.26 | 0.25 | 1.80 | 0.40 | 5.60 | 19 |
2×1.5 | 19/0.32 | 0.30 | 2.25 | 0.40 | 5.80 | 11.7 |
3×1.5 | 19/0.32 | 0.30 | 2.25 | 0.40 | 6.0 | 11.7 |
4×1.5 | 19/0.32 | 0.30 | 2.25 | 0.40 | 6.80 | 11.7 |
