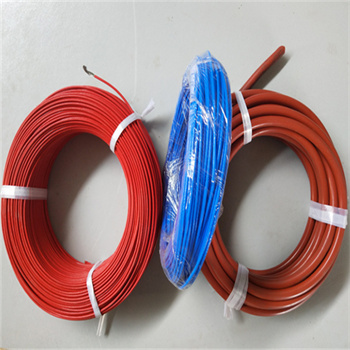

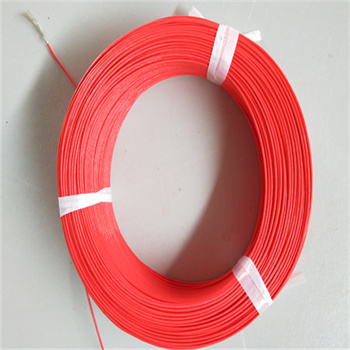

AF200 0.1mm FEP Teflon insulated Silver copper wires cable

Sent E-mail INQUIRY

DETAILS

Insulation FEP

Conductor Silver Copper

Temperature Range -65ºC~+250ºC

Rated Voltage 600V

O.D.Tolerance ±0.1mm

Colour White-Blue-Red-Black-Brown-Yellow-Green-Transpanrent-Yellow/Green

Used for various electric machineries,electronic ceramics,heating parts,car lights,lighting,ballast etc.

Rated temperature: 200oC

AC rated voltage: 300V-600V

Conductor is used in single wire or stranded wire (0.014~95mm2 ) of tin-plated, silver or bare copper.

Insulation is using FEP(F46)

Color: Red\blue\white \ yellow \green\brown\black\grey \transparent

It is corrosion-resistant and almost impossibly soluble in any organic solvent and it is oil-resistant, less high-frequency loss, moisture-proof and has big insulation resistance. Also, it is incombustible, non-aging and durable.

Use Range

It is used in air-conditioner, microwave oven, electric products, lighting sets, electric heater, oven, electric factory, various motors and so on.

Sectional Area (mm²)	Condutor Construction (mm)	Insulation Thickness (mm)	Outer Diameter (mm）	Max. Condutor Resistance DC20℃ （Ω/km	Packing (m)
0.05	7/0.10	0.15	0.60	330	500
0.08	7/0.12	0.20	0.78	327	500
0.12	7/0.15	0.20	0.85	150	500
0.20	7/0.20	0.25	1.10	83.5	200
0.35	19/0.16	0.25	1.30	49.5	200
0.50	19/0.18	0.25	1.40	36.0	200
0.75	19/0.23	0.25	1.70	22.7	200
1.0	19/0.26	0.25	1.80	19.0	200
1.20	19/0.28	0.30	2.0	15.3	200
1.50	19/0.32	0.30	2.20	11.7	200
2.0	19/0.37	0.30	2.45	9.45	100
2.5	19/0.41	0.40	2.95	6.86	100
4.0	37/0.37	0.40	3.40	4.51	100
6.0	37/0.45	0.50	4.20	3.05	100
8.0	133/0.28	0.50	5.20	2.16	100
10	133/0.32	0.50	5.80	1.68	100
16	133/0.39	0.60	7.00	1.13	100
20	133/0.45	0.60	8.0	0.886	100
25	196/0.40	0.6	8.8	0.734	100
35	494/0.30	0.7	10.4	0.511	100
50	396/0.40	0.8	12.2	0.358	100
70	551/0.40	1.0	14.6	0.270	100
95	760/0.40	1.2	17.2	0.210	100
