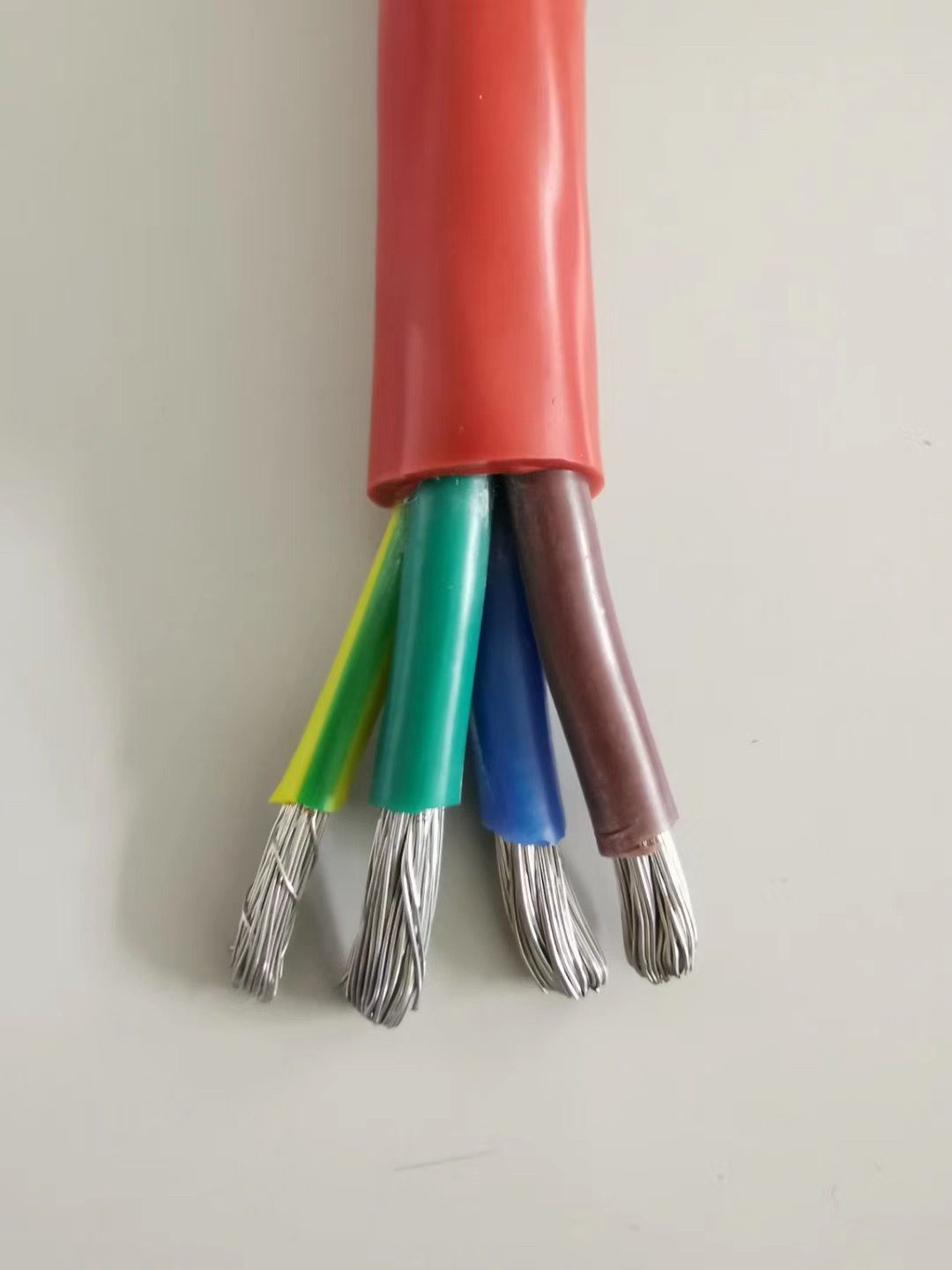

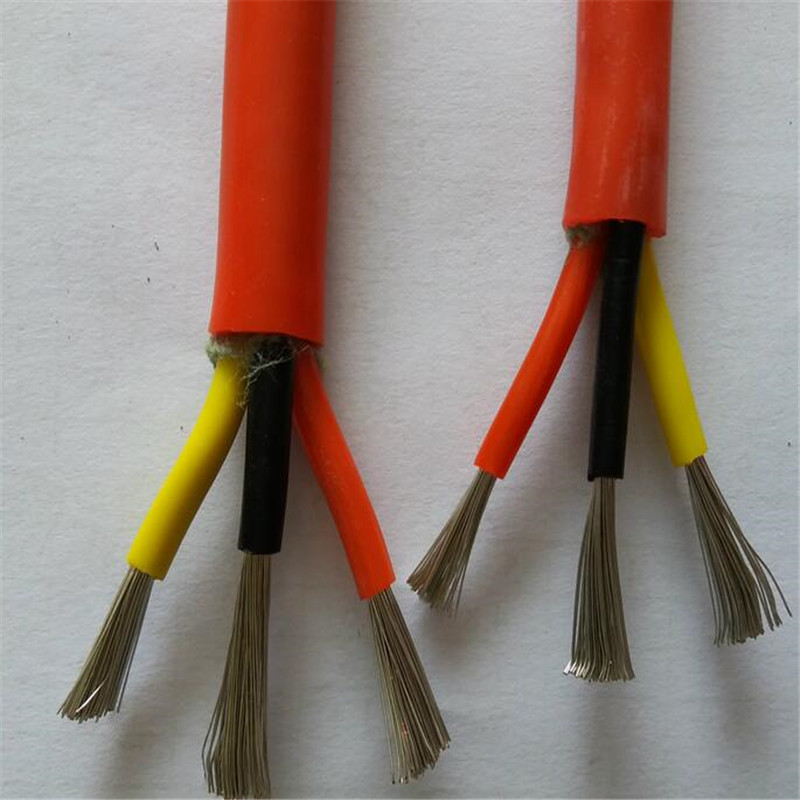

YGZF/YGZFP PTFE PFA FEP SILICONE INSTRUCTION JACKET WIRE

Sent E-mail INQUIRY

DETAILS

TECHNICAL DATA

Jacket:Silicone Rubber

Insulator: PTFE PFA FEP.

Conductor:Tinned Copper

Temperature Range:-60℃~+200℃

Rated Voltage:300V/500V

O.D.Tolerance: ±0.1mm

Colour:White-Blue-red-Black-Yellow-Green-Transparent-Yellow/Green

Application

Be Used all kinds of moving dynamo,power station, pertrochemical industry on high temperature condition and rated voltage of alternating current is 300V/500V and below.

YGZF/YGZFP PTFE PFA FEP SILICONE INSTRUCTION JACKET WIRE

Core number Section (MM2)	Conductor Construction	Insulation Thickness (mm)	Outer Diameter (mm)	Jacket Thickness (mm)	Outer Diameter (mm)	Max.Conductor Resistance DC20℃ (Ω/KM)
2×0.35	19/0.16	0.25	1.30	0.80	4.20	53.1
3×0.35	19/0.16	0.25	1.30	1.10	5.0	53.1
4×0.35	19/0.16	0.25	1.30	1.20	5.50	53.1
5×0.35	19/0.16	0.25	1.30	1.30	6.20	53.1
6×0.35	19/0.16	0.25	1.30	1.40	6.80	53.1
7×0.35	19/0.16	0.25	1.30	1.40	6.80	53.1
2×0.5	19/0.18	0.25	1.40	1.20	5.20	40.1
3×0.5	19/0.18	0.25	1.40	1.20	5.50	40.1
4×0.5	19/0.18	0.25	1.40	1.40	6.20	40.1
5×0.5	19/0.18	0.25	1.40	1.40	6.60	40.1
6×0.5	19/0.18	0.25	1.40	1.40	7.0	40.1
7×0.5	19/0.18	0.25	1.40	1.40	7.0	40.1
2×0.75	19/0.23	0.25	1.70	1.10	5.60	24.60
3×0.75	19/0.23	0.25	1.70	1.40	6.50	24.60
4×0.75	19/0.23	0.25	1.70	1.50	7.20	24.60
5×0.75	19/0.23	0.25	1.70	1.50	7.60	24.60
6×0.75	19/0.23	0.25	1.70	1.50	8.10	24.60
7×0.75	19/0.23	0.25	1.70	1.50	8.10	24.60
2×1	19/0.26	0.25	1.80	1.20	6.0	20.4
3×1	19/0.26	0.25	1.80	1.20	6.20	20.4
4×1	19/0.26	0.25	1.80	1.20	6.80	20.4
5×1	19/0.26	0.25	1.80	1.40	7.60	20.4
6×1	19/0.26	0.25	1.80	1.40	8.20	20.4
7×1	19/0.26	0.25	1.80	1.40	8.20	20.4
