UL1591/1592 Tinned Copper FEP WIRE 200degree

Sent E-mail INQUIRY

DETAILS

TECNICAL DATA

Insulation:FEP

Condutor:Tinned Copper

Temperature range:-80℃~+150℃/+200℃

Rated Voltage:300V

O.D.Tolerance: ±0.1mm

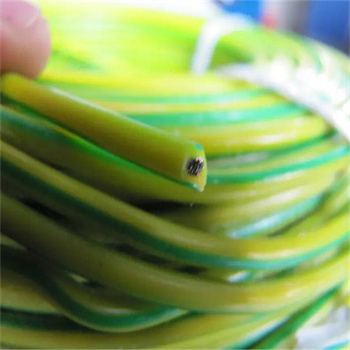

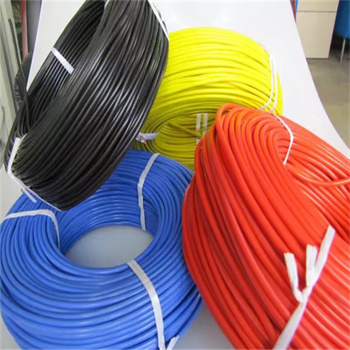

Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green

Used for home appliance,lighting lamps(cold light source)，small motors,temperature sensors,electromagnetic coils,automotive interior cables,electronic appliances,etc.

UL1591/1592 Tinned Copper FEP WIRE 200degree

AWG	Condutor Construction (mm)	Insulation Thickness(mm)	Outer Diameter (mm）	Max.CondutorResistance DC20℃（Ω/km）	Packing (m)
16	19×0.30	0.41	2.32	14.6	305
17	19×0.26	0.41
18	19×0.23	0.41	1.97	23.2	305
20	19×0.19	0.41
20	1×0.80	0.41	1.62	35.2	305
22	19×0.16	0.41
22	1×0.65	0.41	1.47	56.4	610
24	7×0.20	0.41
24	1×0.50	0.41	1.32	89.3	610
26	7×0.16	0.41
26	1×0.40	0.41	1.22	143	610
28	7×0.12	0.41
28	1×0.32	0.41	1.14	227	610
30	7×0.10	0.41
30	1×0.254	0.41	1.074	361	610
32	7×0.08	0.41	1.06	664.8	610
32	1×0.20	0.41	1.02	588.3	610
