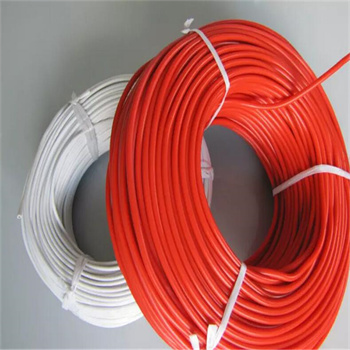

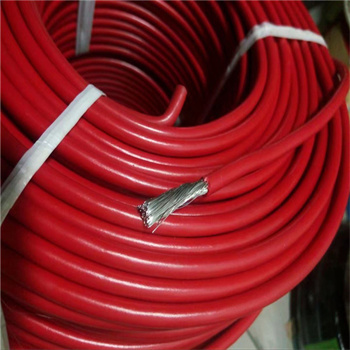

fep teflon insulated High temperature resistance wire for motor cars & ships electrical

Sent E-mail INQUIRY

DETAILS

TECHNICAL DATE

Nominal Voltage:300V

Temperature Range:-100~+200 degree

Conductor:Tinned Copper

Insulator:FEP

O.D.Tolerance:±0.10mm

Testing Volta:2500V

Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc

CHARACTERISTIC

High temperature resistance, low temperature resistance, anti-acid, anti-oil, antisepsis and moistureproof, UL 758, RoHs compliance.

APPLICATION

Apply to household appliance, illumination & lighting & headlamp, electric machines, temperature sensor, military series, metallurgy chemical series, motor cars & ships electrical installation.

Sectional Area (mm²)	Condutor Construction (mm)	Insulation Thickness (mm)	Outer Diameter (mm）	Max. Condutor Resistance DC20℃ （Ω/km	Packing (m)
0.05	7/0.10	0.15	0.60	330	500
0.08	7/0.12	0.20	0.78	327	500
0.12	7/0.15	0.20	0.85	150	500
0.20	7/0.20	0.25	1.10	83.5	200
0.35	19/0.16	0.25	1.30	49.5	200
0.50	19/0.18	0.25	1.40	36.0	200
0.75	19/0.23	0.25	1.70	22.7	200
1.0	19/0.26	0.25	1.80	19.0	200
1.20	19/0.28	0.30	2.0	15.3	200
1.50	19/0.32	0.30	2.20	11.7	200
2.0	19/0.37	0.30	2.45	9.45	100
2.5	19/0.41	0.40	2.95	6.86	100
4.0	37/0.37	0.40	3.40	4.51	100
6.0	37/0.45	0.50	4.20	3.05	100
8.0	133/0.28	0.50	5.20	2.16	100
10	133/0.32	0.50	5.80	1.68	100
16	133/0.39	0.60	7.00	1.13	100
20	133/0.45	0.60	8.0	0.886	100
25	196/0.40	0.6	8.8	0.734	100
35	494/0.30	0.7	10.4	0.511	100
50	396/0.40	0.8	12.2	0.358	100
70	551/0.40	1.0	14.6	0.270	100
95	760/0.40	1.2	17.2	0.210	100
