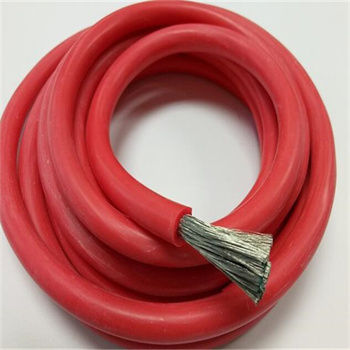

High flexible tinned copper wire conductor single core silicone rubber cable 180degree
TECNICAL DATA
Insulation:Silicone Rubber
Condutor:Tinned,Silver or Nickel Copper
Temperature range:-60℃~+200℃
Rated Voltage:300V/500V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Used for various electric machineries,electronic ceramics,heating parts,car lighting,lighting,ballast etc.
High flexible tinned copper wire conductor single core silicone rubber cable 180degree
Sectional Area (mm²) | Condutor Construction (mm) | Insulation Thickness (mm) | Outer Diameter (mm） | Max.Condutor Resistance DC20℃ （Ω/km） | Packing (m) |
0.07 | 19/0.07 | 0.50 | 1.30 | 365 | 500 |
0.10 | 12/0.10 | 0.50 | 1.30 | 188 | 500 |
0.12 | 32/0.07 | 0.50 | 1.40 | 166 | 500 |
0.15 | 39/0.07 | 0.50 | 1.40 | 136 | 500 |
0.20 | 53/0.07 | 0.50 | 1.40 | 97.8 | 500 |
0.22 | 45/0.08 | 0.50 | 1.60 | 97.8 | 500 |
0.30 | 59/0.08 | 0.50 | 1.60 | 71.2 | 500 |
0.40 | 105/0.07 | 0.50 | 1.80 | 54.8 | 500 |
0.50 | 100/0.08 | 0.60 | 2.16 | 40.1 | 200 |
0.75 | 384/0.05 | 0.60 | 2.40 | 26.7 | 200 |
1.0 | 200/0.08 | 0.60 | 2.70 | 20.0 | 200 |
1.50 | 304/0.08 | 0.70 | 3.30 | 13.7 | 100 |
2.0 | 418/0.08 | 0.70 | 3.60 | 10.25 | 100 |
2.50 | 494/0.08 | 0.80 | 4.0 | 8.21 | 100 |
4.0 | 798/0.08 | 0.80 | 4.60 | 5.09 | 100 |
6.0 | 1200/0.08 | 1.0 | 5.60 | 3.39 | 100 |
