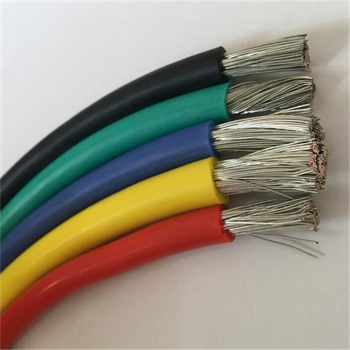

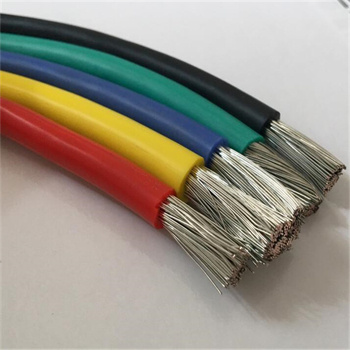

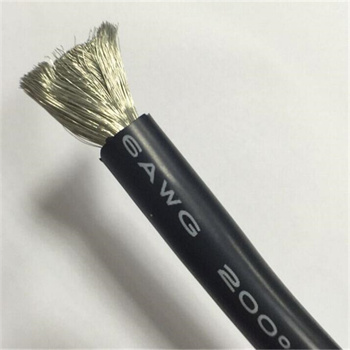

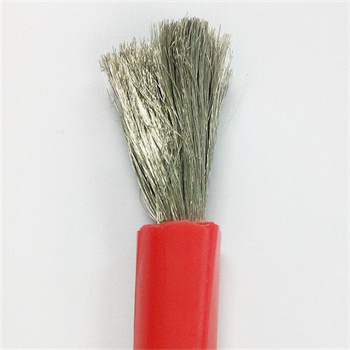

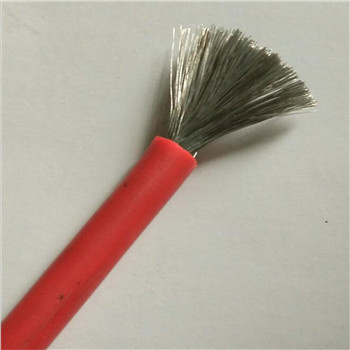

High flexible tinned copper wire conductor single core silicone rubber cable 180degree

DETAILS

Product features:

Rated voltage: 300/500V

Working temperature: -60 ~ 200 ℃,

Construction:

conductor: solid or stranded tinned copper wire,

insulation: silicon rubber,

color: red/yellow/blue/white/black/green/brown

Characteristic:

it has excellent high temperature &low temperature resistance, excellent electrical insulation properties, excellent

hemical stability, high voltage resistance, ageing resistance, long service life.And soft, easy to install.

Application:

Widely used in lighting, household appliances, electric appliances, instrument, electrical and electronic wiring, lamps

and lanterns, burner and high temperature environment.

spec of structure and technical parameters（high flexible）：
Nominal area (mm2)	Core construction	Nominal insulation thickness	Nominal OD	Maximum DC Resistance at 20℃	packing length
（mm2）	Strand/Diameter (mm)	（mm）	（mm）	（Ω/km）	（m）
0.07	19/0.07	0.5	1.3	365	500
0.1	12/0.10	0.5	1.3	188	500
0.12	32/0.07	0.5	1.4	166	500
0.15	39/0.07	0.5	1.4	136	500
0.2	53/0.07	0.5	1.4	97.8	500
0.22	45/0.08	0.5	1.6	97.8	500
0.3	59/0.08	0.5	1.6	71.2	500
0.4	105/0.07	0.5	1.8	54.8	500
0.5	100/0.08	0.6	2.16	40.1	200
0.75	384/0.05	0.6	2.4	26.7	200
1	200/0.08	0.6	2.7	20	200
1.5	304/0.08	0.7	3.3	13.7	100
2	418/0.08	0.7	3.6	10.25	100
2.5	494/0.08	0.8	4	8.21	100
4	798/0.08	0.8	4.6	5.09	100
6	1200/0.08	1	5.6	3.39	100
Noted:Other sizes and colours available on request
