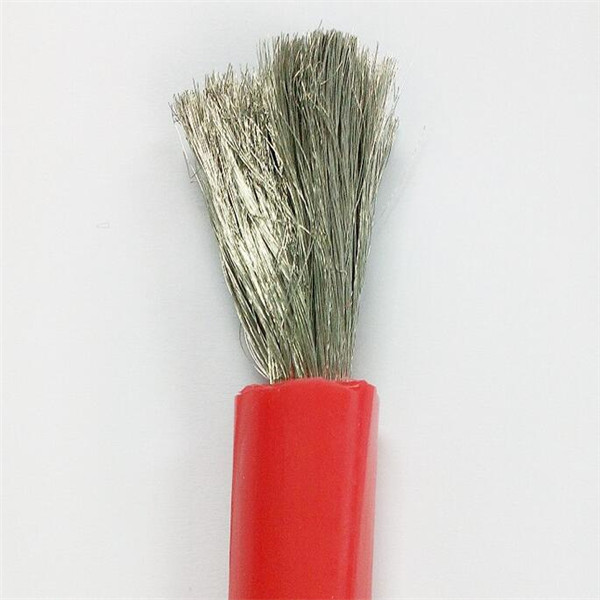

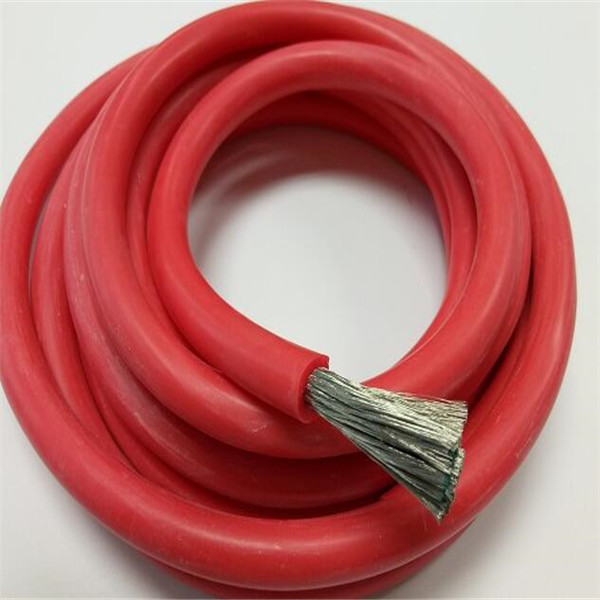

Silicone Insulated Extra Flexible Wire
TECNICAL DATA
Insulation:Silicone Rubber
Condutor:Tinned,Silver or Nickel Copper
Temperature range:-60℃~+200℃
Rated Voltage:300V/500V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Used for various electric machineries,electronic ceramics,heating parts,car lighting,lighting,ballast etc.
Silicone Insulated Extra Flexible Wire | ||||||
AWG | Conductor No./Dia | Conductor Dia(mm) | Nominal insulation thickness （mm） | Nominal OD（mm） | Max DC Resis 20℃（Ω/km） | Ampacity(A) |
30 | 11*0.08 | 0.3 | 0.55 | 1.2 | 331 | 0.8 |
28 | 16*0.08 | 0.36 | 0.55 | 1.3 | 227.2 | 1.25 |
26 | 30*0.08 | 0.46 | 0.55 | 1.5 | 123 | 3.5 |
24 | 40*0.08 | 0.61 | 0.55 | 1.6 | 97.6 | 5 |
22 | 60*0.08 | 0.78 | 0.55 | 1.7 | 88.6 | 8.73 |
20 | 100*0.08 | 0.92 | 0.55 | 1.8 | 62.5 | 13.87 |
18 | 150*0.08 | 1.19 | 0.55 | 2.3 | 39.5 | 22 |
16 | 252*0.08 | 1.53 | 0.8 | 3 | 24.4 | 35 |
14 | 400*0.08 | 1.78 | 0.9 | 3.5 | 15.6 | 55.6 |
12 | 680*0.08 | 2.48 | 1 | 4.5 | 9.8 | 88.4 |
10 | 1050*0.08 | 3.06 | 1.25 | 5.5 | 6.3 | 140.6 |
8 | 1650*0.08 | 3.75 | 1.25 | 6 | 3.6 | 200 |
