DETAILS

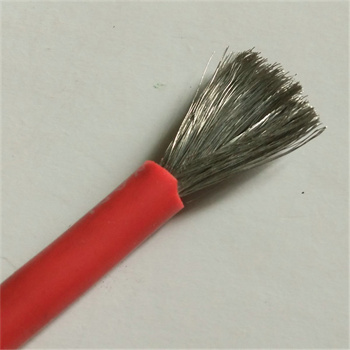

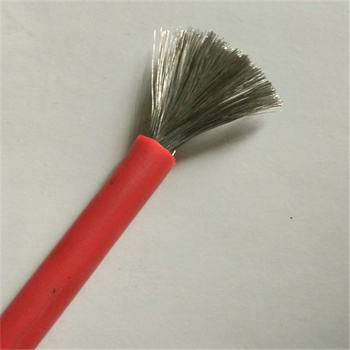

UL 3142 SILICONE WIRE
TECNICAL DATA
Insulation:Silicone Rubber
Condutor:Tinned,Silver or Nickel Copper
Temperature range:-60℃~+150℃
Rated Voltage:300V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Used for various electric machineries,electronic ceramics,heating parts,car lighting,lighting,ballast etc.
UL 3142 SILICONE WIRE
AWG | Condutor Construction No./mm | Insulation Thickness (mm) | Outer Diameter (mm） |
Max.Condutor Resistance DC20℃ （Ω/km）
| Packing (m) |
12 | 49×0.30 | 1.59 | 5.88 | 5.64 | 305 |
14 | 40×0.30 | 1.59 | 5.08 | 8.96 | 305 |
16 | 7×0.50 | 1.59 | 4.68 | 14.6 | 305 |
17 | 32×0.20 | 1.59 | 4.48 | 18.3 | 305 |
18 | 7×0.40 | 1.59 | 4.38 | 23.2 | 305 |
26 | 7×0.32 | 1.59 | 4.14 | 36.7 | 305 |
