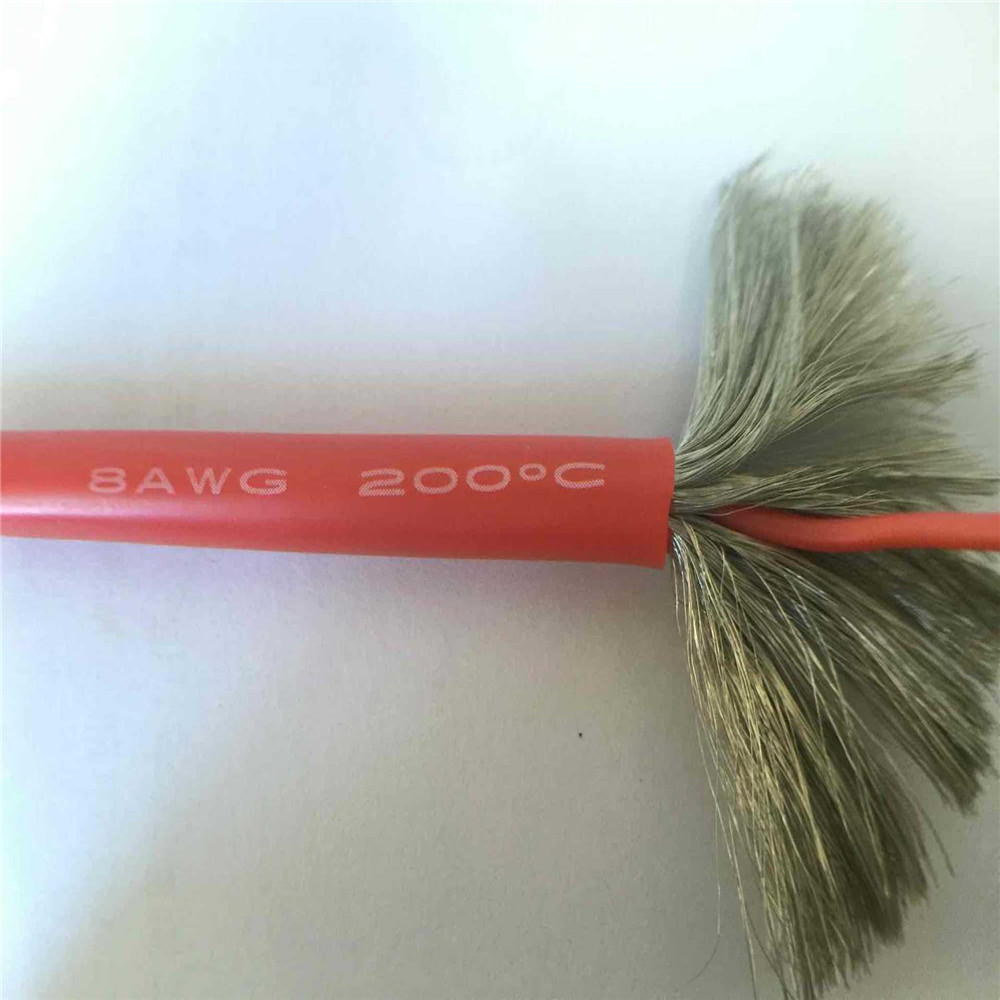

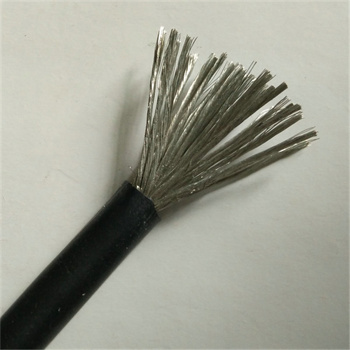

Flexible tinned copper wire conductor single core silicone rubber cable 180degree

DETAILS

TECNICAL DATA

Insulation:Silicone Rubber

Condutor:Tinned,Silver or Nickel Copper

Temperature range:-60℃~+200℃

Rated Voltage:300V/500V

O.D.Tolerance: ±0.1mm

Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green

Used for various electric machineries,electronic ceramics,heating parts,car lighting,lighting,ballast etc.

Flexible tinned copper wire conductor single core silicone rubber cable 180degree

Sectional Area (mm²)	Condutor Construction (mm)	Insulation Thickness (mm)	Outer Diameter (mm）	Max. Condutor Resistance DC20℃ （Ω/km）	Packing (m)
0.2	1×0.50	0.65	1.80	95	500
0.2	12×0.15	0.60	1.80	95	500
0.3	16×0.15	0.60	1.85	71.2	500
0.4	23×0.15	0.50	1.85	49.6	200
0.5	28×0.15	0.60	2.20	40.1	200
0.75	42×0.15	0.70	2.60	26.7	200
1.0	32×0.20	0.70	2.80	20.0	200
1.5	48×0.20	0.70	3.10	13.7	100
2.5	49×0.25	0.80	3.70	8.21	100
4.0	56×0.30	0.80	4.30	5.09	100
6.0	84×0.30	0.80	5.20	3.39	100
10	84×0.40	1.00	6.80	1.95	100
16	126×0.40	1.20	8.40	1.24	100
25	196×0.40	1.40	10.40	0.795	100
