DETAILS

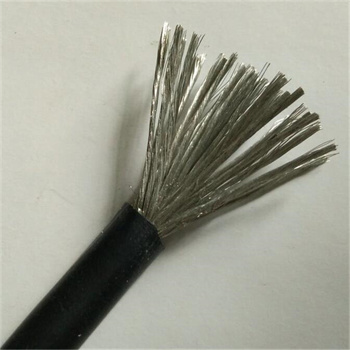

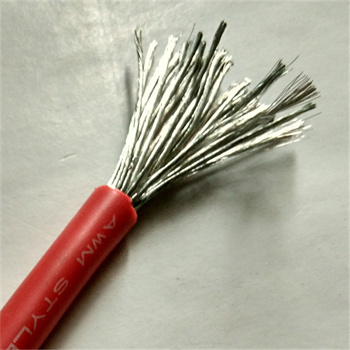

UL 3140 SILICONE WIRE
TECNICAL DATA
Insulation:Silicone Rubber
Condutor:Tinned,Silver or Nickel Copper
Temperature range:-60℃~+150℃
Rated Voltage:300V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Used for various electric machineries,electronic ceramics,heating parts,car lighting,lighting,ballast etc.
UL 3140 SILICONE WIRE
AWG | Condutor Construction No./mm | Insulation Thickness (mm) | Outer Diameter (mm） | Max.Condutor Resistance DC20℃ （Ω/km） | Packing (m) |
20 | 7×0.32 | 1.59 | 4.14 | 36.7 | 305 |
22 | 7×0.26 | 1.59 | 3.96 | 59.4 | 610 |
24 | 7×0.20 | 1.59 | 3.78 | 94.2 | 610 |
26 | 7×0.16 | 1.59 | 3.66 | 150 | 610 |
