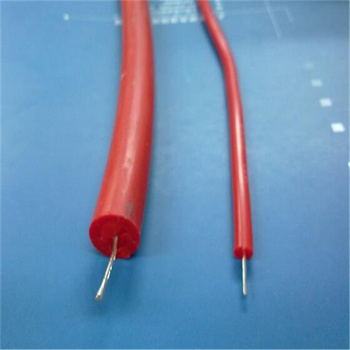

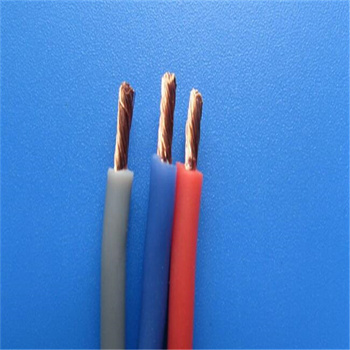

SILICONE HIGH VOLTAGE WIRE AGG-AC
TECHNICAL DATA
Insulator:Silicone Rubber
Conductor:Tinned Copper
Temperature Range:-60℃~+200℃
Rated Voltage:1kv/3kv/6kv/10kv/35kv
O.D.Tolerance: ±0.1㎜
Coulor:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Mainly used in high-voltage cabinet,power systems,high voltage electric machineries,television receivers,transformers,high-voltage cable for electronic instruments etc.
SILICONE HIGH VOLTAGE WIRE AGG-AC
Voltage Rating (KV) | Sectional Area (mm2) | Conductor Construction (No./mm) | Outer Diameter （mm) | Max.Conductor Resistance DC20℃ （Ω/KM） | Packing (m) |
1
| 0.50 | 16/0.20 | 3.30 | 40.1 | 100 |
0.75 | 24/0.20 | 3.60 | 26.7 | 100 | |
1.00 | 32/0.20 | 3.70 | 20.0 | 100 | |
1.50 | 30/0.25 | 4.00 | 13.7 | 100 | |
2.00 | 40/0.25 | 4.30 | 10.0 | 100 | |
2.50 | 49/0.25 | 4.40 | 8.21 | 100 | |
4.00 | 56/0.30 | 5.60 | 5.09 | 100 | |
6.00 | 84/0.30 | 6.60 | 3.39 | 100 | |
10.0 | 84/0.40 | 7.80 | 1.95 | 100 | |
16.0 | 126/0.40 | 9.00 | 1.24 | 100 | |
25.0 | 196/0.40 | 11.20 | 0.795 | 100 | |
35.0 | 494/0.30 | 12.80 | 0.565 | 100 | |
50.0 | 396/0.40 | 15.0 | 0.393 | 100 | |
70.0 | 551/0.40 | 17.20 | 0.277 | 100 | |
95.0 | 760/0.40 | 19.80 | 0.210 | 100 | |
120.0 | 608/0.50 | 21.50 | 0.164 | 100 | |
150.0 | 760/0.50 | 23.40 | 0.132 | 100 | |
185.0 | 925/0.50 | 25.2 | 0.108 | 100 | |
3 | 0.50 | 16/0.20 | 4.90 | 40.1 | 100 |
0.75 | 24/0.20 | 5.20 | 26.7 | 100 | |
1.00 | 32/0.20 | 5.30 | 20.0 | 100 | |
1.50 | 30/0.25 | 6.00 | 13.7 | 100 | |
2.00 | 40/0.25 | 6.25 | 10.0 | 100 | |
2.50 | 49/0.25 | 6.80 | 8.21 | 100 | |
4.00 | 56/0.30 | 7.60 | 5.09 | 100 | |
6.00 | 84/0.30 | 8.80 | 3.39 | 100 | |
10.0 | 84/0.40 | 9.80 | 1.95 | 100 | |
16.0 | 126/0.40 | 11.40 | 1.24 | 100 | |
25.0 | 196/0.40 | 13.20 | 0.795 | 100 | |
6 | 0.50 | 16/0.20 | 5.90 | 40.1 | 100 |
0.75 | 24/0.20 | 6.20 | 26.7 | 100 | |
1.00 | 32/0.20 | 6.30 | 20.0 | 100 | |
1.50 | 30/0.25 | 7.20 | 13.7 | 100 | |
2.00 | 40/0.25 | 7.50 | 10.0 | 100 | |
2.50 | 49/0.25 | 8.00 | 8.21 | 100 | |
4.00 | 56/0.30 | 8.80 | 5.09 | 100 | |
6.00 | 84/0.30 | 10.0 | 3.39 | 100 | |
10.0 | 84/0.40 | 11.0 | 1.95 | 100 | |
16.0 | 126/0.40 | 12.80 | 1.24 | 100 | |
25.0 | 196/0.40 | 14.60 | 0.795 | 100 | |
10 | 0.30 | 7/0.26 | 9.00 | 71.2 | 100 |
0.50 | 16/0.20 | 9.00 | 40.1 | 100 | |
0.75 | 24/0.20 | 9.00 | 26.7 | 100 | |
1.00 | 32/0.20 | 9.00 | 20.0 | 100 | |
1.50 | 30/0.25 | 9.00 | 13.7 | 100 | |
2.00 | 40/0.25 | 10.0 | 10.0 | 100 | |
2.50 | 49/0.25 | 10.0 | 8.21 | 100 | |
4.00 | 56/0.30 | 10.0 | 5.09 | 100 | |
6.00 | 84/0.30 | 11.0 | 3.39 | 100 | |
10.0 | 84/0.40 | 12.0 | 1.95 | 100 | |
16.0 | 126/0.40 | 13.80 | 1.24 | 100 | |
25.0 | 196/0.40 | 15.6 | 0.795 | 100 | |
35 | 4.00 | 56/0.30 | 18.0 | 5.09 | 100 |
6.00 | 84/0.30 | 18.0 | 3.39 | 100 | |
10.0 | 84/0.40 | 19.0 | 1.95 | 100 | |
16.0 | 126/0.40 | 20.0 | 1.24 | 100 | |
25.0 | 196/0.40 | 21.0 | 0.795 | 100 | |
35.0 | 494/0.30 | 23.0 | 0.565 | 100 | |
50.0 | 396/0.40 | 25.0 | 0.393 | 100 | |
70.0 | 551/0.40 | 27.0 | 0.277 | 100 | |
95.0 | 760/0.40 | 29.0 | 0.210 | 100 |
