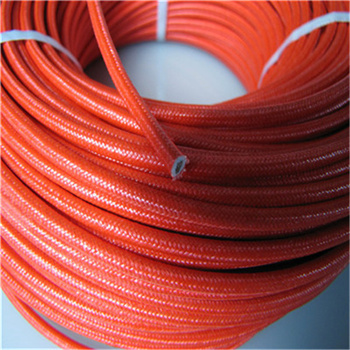

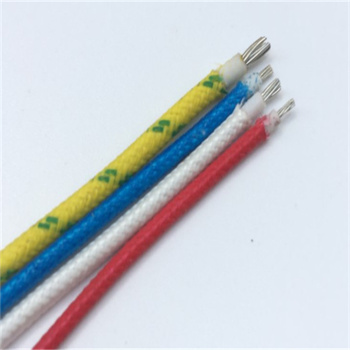

Fiberglass braid High Temperature Resistant Silicone Rubber Cable And Wires
Application:
Fiber glass braid silicone rubber wire is good for heat resistant, used in high temperature environment of electrical appliance like: Cooker, iron, washing machine, air conditioner. It's also used for electric motor leading cable, lighting, transformer; Wire harness, inner connection use etc.
Fiberglass braid High Temperature Resistant Silicone Rubber Cable And Wires
Sectional area | Condutor Construction | Insulation | Outer | Max.Condutor Resistance | Packing | |
（mm²） | No./mm | Thickness(mm) | Sheath Thickness | Diameter | DC20℃（Ω/km） | (m) |
(mm) | (mm） | |||||
0.5 | 28×0.15 | 0.6 | 0.15 | 2.4 | 40.1 | 200 |
0.75 | 42×0.15 | 0.6 | 0.15 | 2.65 | 26.7 | 200 |
1 | 32×0.20 | 0.6 | 0.15 | 2.8 | 20 | 200 |
1.5 | 48×0.20 | 0.7 | 0.18 | 3.4 | 13.7 | 200 |
2.5 | 49×0.25 | 0.8 | 0.18 | 4 | 8.21 | 200 |
4 | 56×0.30 | 0.8 | 0.2 | 4.6 | 5.09 | 200 |
6 | 84×0.30 | 0.8 | 0.2 | 5.2 | 3.39 | 200 |
10 | 84×0.40 | 1 | 0.25 | 6.7 | 1.95 | 200 |
16 | 126×0.40 | 1 | 0.25 | 9 | 1.24 | 200 |
