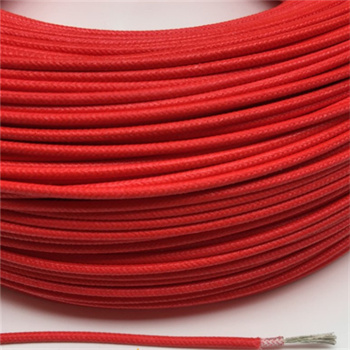

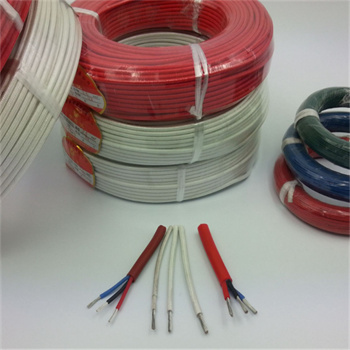

UL3071 UL3074 UL3075 UL3122 SILICONE FIBERGLASS WIRE

Sent E-mail INQUIRY

DETAILS

TECNICAL DATA

Insulation:Fiberglass+Silicone

Insulation:Silicone Rubber

Condutor:Tinned Copper

Temperature range:-60℃~+200℃

Rated Voltage:600V

O.D.Tolerance: ±0.1mm

Colour:White-Blue-Red-Black-Yellow-Green-Transparent

-Yellow/Green

Used for heating source for lighting,electric machinery,air conditioning,oven,drying path,auto ignition appliance etc.

UL3071 UL3074 UL3075 UL3122 SILICONE FIBERGLASS WIRE

AWG	Condutor Construction (mm)	Insulation Thickness (mm)I	Sheath Thickness (mm)	Outer Diameter (mm)	Max. Conductor Resistance DC20℃（Ω/㎞）	Packing (m)
3071-14	40×0.26	0.78	0.15	3.76	8.96	305
3071-16	7×0.50	0.78	0.15	3.36	14.6	305
3071-17	32×0.20	0.78	0.15	3.20	18.3	305
3071-18	7×0.40	0.78	0.15	3.06	23.2	305

UL3071 UL3074 UL3075 UL3122 SILICONE FIBERGLASS WIRE

AWG

Condutor Construction

(mm)

Insulation

Thickness

(mm)

Sheath Thickness (mm)

Outer Diameter

(mm)

Max.Conductor Resistance

DC20℃ （Ω/㎞）

Packing

(m)

3074-12

49×0.30

0.78

0.15

4.56

5.46

305

AWG

Condutor Construction

(mm)

Insulation

Thickness

(mm)

Sheath Thickness (mm)

Outer Diameter

(mm)

Max.Conductor Resistance

DC20℃ （Ω/㎞）

Packing

(m)

3075-10

77×0.30

1.15

0.15

6.30

3.546

305

UL3071 UL3074 UL3075 UL3122 SILICONE FIBERGLASS WIRE

AWG	Condutor Construction (mm)	Insulation Thickness (mm)I	Sheath Thickness (mm)	Outer Diameter (mm)	Max. Conductor Resistance DC20℃（Ω/㎞） DC20℃（Ω/㎞）	Packing (m)
3122-16	7×0.50	0.39	0.15	2.58	14.6	305
3122-17	32×0.20	0.39	0.15	2.42	18.3	305
3122-18	7×0.40	0.39	0.15	2.28	23.2	305
3122-20	7×0.32	0.39	0.15	2.04	36.7	305
3122-22	7×0.26	0.39	0.15	1.86	59.4	610
3122-24	7×0.20	0.39	0.15	1.68	94.2	610
3122-26	7×0.16	0.39	0.15	1.56	150	610
