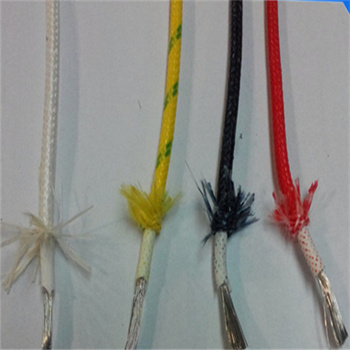

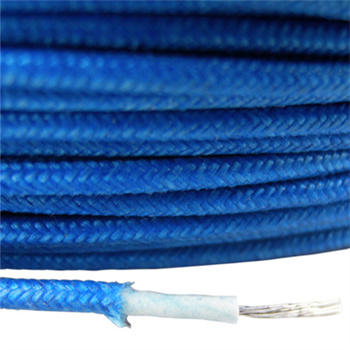

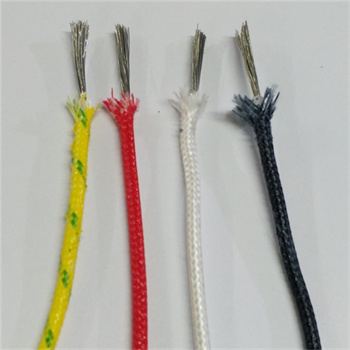

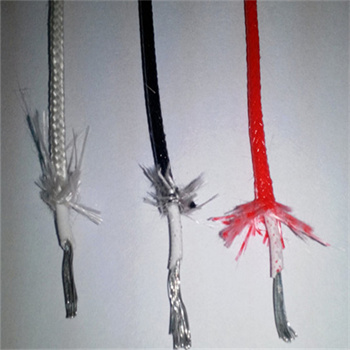

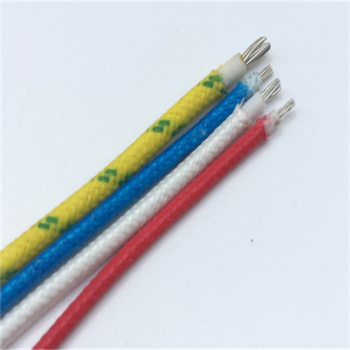

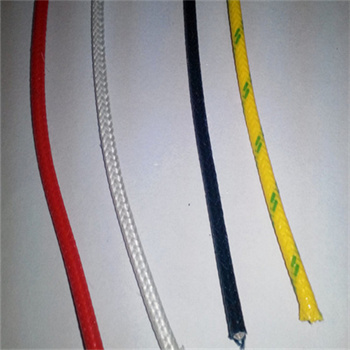

AGRP model Silicone rubber insulated glass fiber braided copper core high temperature cable

DETAILS

Product Features:

1, rated voltage: 500V

2, the working temperature: -60 ~ +200 ℃

3, Conductor: Stranded tinned copper wire

4, insulation: silicone rubber

5, weaving: glass fiber + silicone

6, color: red / yellow / blue / white / black / yellow green / brown and so on

Features / Uses:

Has excellent high temperature and low temperature performance, has excellent electrical insulation properties,

excellent chemical stability, high voltage resistance, aging resistance, long service life. And soft and easy to install.

Widely used in lighting, household appliances, electric appliances, instrumentation equipment, electrical wiring and

electronic, lighting, gas appliances and other high-temperature environment.

AGRP model Silicone rubber insulated glass fiber braided copper core high temperature cable

Sectional Area (mm2)	Condutor Construction (mm)	Insulation Thickness (mm)	Sheath Thick- ness(mm)	OuterDiameter (mm)	Max.conductor Resistance DC20℃（Ω/㎞）
0.20	12×0.15	0.50	0.15	1.80	95
0.30	16×0.15	0.50	0.15	2.00	71.2
0.40	23×0.15	0.50	0.15	2.20	49.6
0.50	28×0.15	0.50	0.15	2.20	40.1
0.75	42×0.15	0.50	0.15	2.50	26.7
1.0	32×0.20	0.50	0.15	2.70	20.0
1.2	40×0.20	0.50	0.15	2.80	15.9
1.5	48×0.20	0.55	0.15	3.00	13.7
2.0	40×0.25	0.60	0.15	3.40	9.90
2.5	49×0.25	0.65	0.15	3.70	8.21
4.0	56×0.30	0.65	0.20	4.40	5.09
6.0	84×0.30	0.70	0.20	5.40	3.39
10	84×0.40	0.80	0.20	6.80	1.95
16	126×0.40	1.20	0.25	8.90	1.24
25	196×0.40	1.20	0.25	10.50	0.795
35	494×0.30	1.80	0.25	13.00	0.565
50	396×0.40	1.80	0.30	14.80	0.393
70	551×0.40	1.80	0.30	17.00	0.277
95	760×0.40	2.20	0.30	19.60	0.210
120	608×0.50	2.20	0.35	21.00	0.164
150	756×0.50	2.20	0.35	23.10	0.132
185	925×0.50	2.40	0.40	25.60	0.108
240	1221×0.50	2.40	0.40	28.60	0.0817
300	1517×0.50	2.80	0.40	32.40	0.0654
