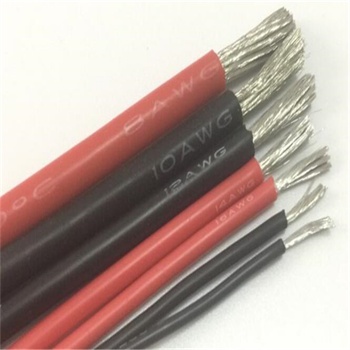

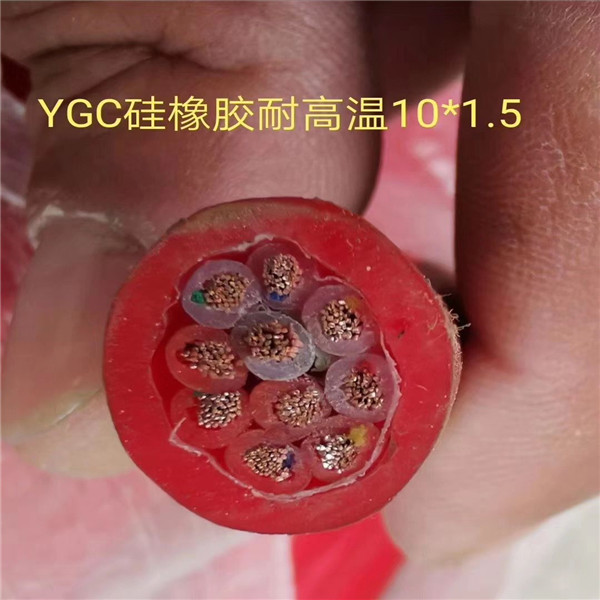

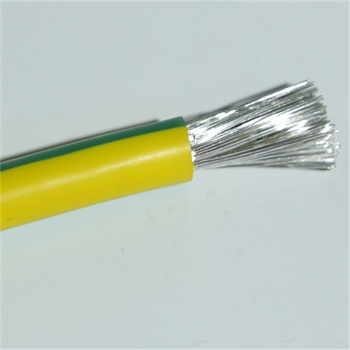

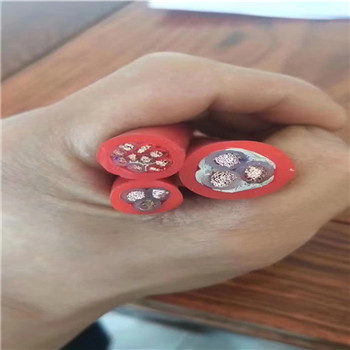

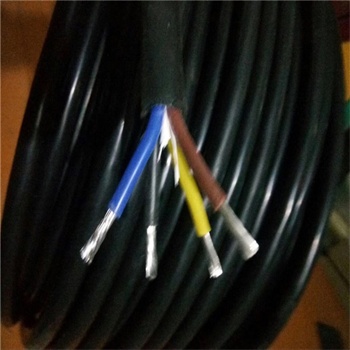

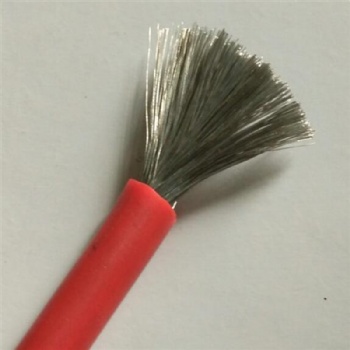

(ZR)-KGG

Control cable with Cu core, silicon rubber insulation and sheath

To be fixedly laid indoor, in cable furrow or pipe

(ZR)-KGGP

Control cable with Cu core, silicon rubber insulation and sheath, braided shielding

To be fixedly laid indoor, in cable furrow or pipe with demand on shielding

(ZR)-KGGP2

Control cable with Cu core, silicon rubber insulation and sheath, copper tape shielding

To be fixed laid indoor, in cable furrow or pipe with demand on shielding

(ZR)-KGGRP

Control soft cable with Cu core, silicon rubber insulation and sheath

To be laid indoor or in the environment with demand on softness and mobility

(ZR)-KGGRP

Control soft cable with Cu core, silicon rubber insulation and sheath, braided shielding

To be laid indoor or in the environment with demand on softness and shielding

                 Items

                                  Description

         Rated Voltage

Frequency AC rated voltage is 0.6 / 1kV. The maximum

voltage of using AC system is no more than 1.2 kv

  Operating Temperature

The long-term maxmium operating temperature of cable：conductor is 180 ºC.

Environment Temperature

Minimum environment temperature: fixed laying -60 ºC,

 non-fixed laying -20 ºC.

     Laying temperature

 Laying cable temperature should not be lower than -20 ºC.

       Bending radius

The bending radius of single-core cable is not more than 20D,

the bending radius of multi-cores cable is not more than 15D.

        Storage

Finished cable should be stored at 0 ~ 40 ºC, humidity is

below 85% of the environment, and avoid direct sunlight

and the rain, keep ventilation and dry environment.

According to the above requirements for storage and use,

the cable can be used for more than 25 years long.

   Installation Instruction

When installed, the environment temperature should not be

lower than -20 ºC. if the environment temperature is lower

 -20 ºC, the cable should be preheated before installation.

To avoid the machnical damage of the internal cable,

the bending radius should be controlled strictly.The bending

radius of single  core cable is not more than 20D, the bending

radius of multi-cores cable is not more than 15D.

("D "means the out diameter of cable)

Spec(mm2)

Conductor No./Dia

Conductor diameter(mm)

Insulation Thickness (mm)

Tape Spec

Sheath Thickness (mm)

Outer diameter(mm)

Weight (kg/km)

1×10

7/1.35

4.05

1

20×0.17

1.4

9.4

162.5

1×16

7/1.66

4.98

1

20×0.17

1.4

10.3

218.5

1×25

7/2.14

6.42

1.2

25×0.17

1.4

12.1

333.7

1×35

7/2.52

7.56

1.2

25×0.17

1.4

13.3

435.4

1×50

10/2.52

8.4

1.4

30×0.17

1.4

14.5

569.9

1×70

14/2.52

10

1.4

35×0.17

1.4

16.1

761.2

1×95

19/2.52

11.6

1.6

40×0.17

1.5

18.3

1029.3

1×120

24/2.52

13

1.6

40×0.17

1.5

19.7

1265.9

1×150

30/2.52

14.6

1.8

45×0.17

1.6

21.9

1568.8

1×185

37/2.52

16.2

2

50×0.17

1.7

24.1

1924.8

1×240

48/2.52

18.5

2.2

60×0.17

1.8

27

2470.7

1×300

61/2.52

20.6

2.4

60×0.17

1.9

29.7

3106

2×1.5

1/1.38

1.38

1

20×0.17

1.8

10.9

148.7

2×2.5

1/1.78

1.78

1

20×0.17

1.8

11.7

183.7

2×4

1/2.25

2.25

1

20×0.17

1.8

12.7

232.9

2×6

1/2.76

2.76

1

25×0.17

1.8

13.7

292.8

2×10

7/1.35

4.05

1

30×0.17

1.8

16.3

434.9

2×16

7/1.66

4.98

1

35×0.17

1.8

18.1

579.9

2×25

7/2.14

6.42

1.2

45×0.17

1.8

21.7

888.9

2×35

7/2.52

7.56

1.2

50×0.17

1.8

24.1

1154.1

2×50

10/2.52

8.4

1.4

55×0.17

1.8

26.5

1490.6

2×70

14/2.52

10

1.4

60×0.17

1.9

29.9

1988.6

2×95

19/2.52

11.6

1.6

60×0.17

2

34.1

2672.6

2×120

24/2.52

13

1.6

60×0.17

2.1

37.1

3277.5

2×150

30/2.52

14.6

1.8

60×0.17

2.2

41.3

4067.4

2×185

37/2.52

16.2

2

60×0.17

2.4

45.7

5002.4

2×240

48/2.52

18.5

2.2

60×0.17

2.5

51.3

6405.2

2×300

61/2.52

20.6

2.4

60×0.17

2.7

56.7

8020.3

3×1.5

1/1.38

1.38

1

20×0.17

1.8

11.4

170.5

3×2.5

1/1.78

1.78

1

20×0.17

1.8

12.3

216.3
