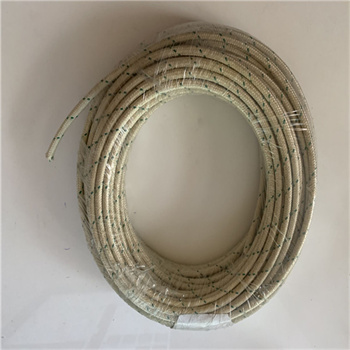

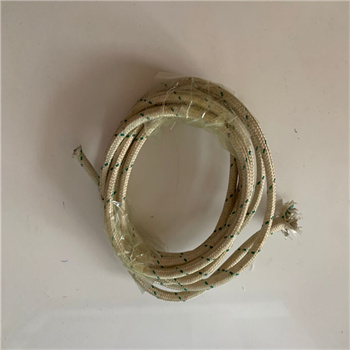

Pure nickel wire boiler application 4mm2,500 degrees high temperature wire GN500-03

Sent E-mail INQUIRY

DETAILS

TECNICAL DATA

Condutor: Nickel

Temperature range:-60℃~+800℃

Rated Voltage: 500V

O.D.Tolerance: ±0.1mm

Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green

Used for electric heating,petrochemical,electrical and mechanical equipment,power plant,drying pathdrying room,heating source for lighting,electric appliances and other high temperature areas.

Pure nickel wire boiler application 4mm2,500 degrees high temperature wire GN500-03

Sectional Area (mm²)	Condutor Construction (mm)	Insulation Thickness (mm)	Outer Diameter (mm）	Max.Condutor Resistance DC20℃ （Ω/km	Packing (m)
0.5	7×0.30	0.5	2.6±0.3	160.4	200
0.75	11×0.30	0.5	2.7±0.3	106.8	200
1	14×0.30	0.5	2.8±0.3	80.0	200
1.5	21×0.30	0.5	3.0±0.3	54.8	100
2	28×0.30	0.6	3.3±0.5	42.0	100
2.5	35×0.30	0.6	3.6±0.5	32.8	100
4	56×0.30	0.8	4.7±0.5	20.4	100
6	84×0.30	0.8	5.5±0.5	13.6	100
10	84×0.40	0.8	6.6±0.5	7.8	100
16	228×0.30	0.8	7.8±0.5	4.96	100
16	126×0.40	0.8	7.8±0.5	4.96	100
25	196×0.40	0.8	9.5±0.5	3.18	100
25	361×0.30	0.8	9.5±0.5	3.18	100
35	494×0.30	0.8	11.2±1.0	2.26	100
50	396×0.40	1.2	13.2±1.0	1.58	100
50	703×0.30	1.2	13.2±1.0	1.58	100
70	551×0.40	1.2	15.4±1.0	1.11	100
70	988×0.30	1.2	15.4±1.0	1.11	100
95	760×0.40	1.2	17.4±1.0	0.84	100
