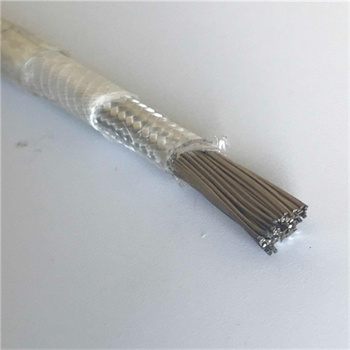

High silica yarn braid Stranded Nickel plated copper or pure nickel 500deg.C high temperature wire

DETAILS

RATINGS/ APPROVALS

CONSTRUCTION

Conductors

22AWG-8AWG

Stranded Nickel plated copper-27% or pure nickel

Insulating system

Mica tape composite

Outer covering

High silica yarn braid with high temperature finish

Color:Natural

CHARACTERISTICS

Unique insulation system offers outstanding heat-aged flexibility for longer service life.

Excellent cutting and stripping characteristics, making it ideal for high volume manufacturing and assembly.

Resists braid high .

Suitable for applications to -60C

APPLICATIONS

Be popularly used to high temperature conditions in Electron, Home Appliance, Lamp, Appliance, etc.

We have got UL, ISO9001 Certifications.

500deg.C high temperature high temperature wire
Size	Conductor	Insulation Thickness	Braid Thickness	Diameter
AWG	Structure	(mm)	(mm)	(mm)
24	7/0.2	≥0.4	≥0.18	1.8±0.2
22	7/0.254			2.0±0.2
20	10/0.254			2.2±0.2
18	16/0.254			2.4±0.2
16	26/0.254			2.7±0.2
14	41/0.254			3.1±0.2
12	65/0.254			3.8±0.2
10	103/0.254	≥0.51	≥0.38	4.7±0.2
8	163/0.254	≥0.51	≥0.38	6.1±0.2
