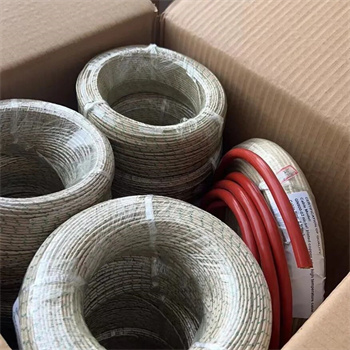

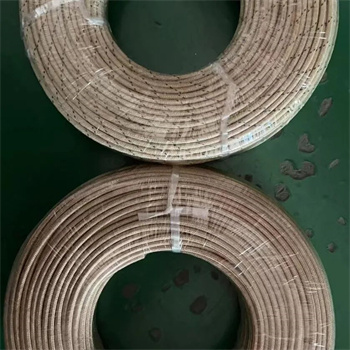

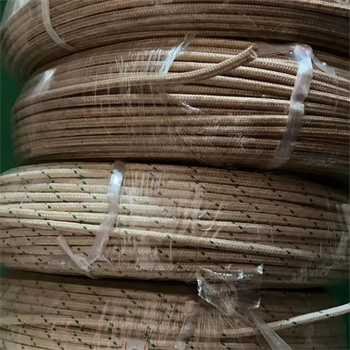

500deg.C mica wrapped fiberglass braided high temperature wire cable

DETAILS

Rated temperature:-60℃~+500℃

Rated voltage:600V

Conductor: copper, tinned copper, nickel copper, nickel

Insulation: mica tape with fiberglass composite

Jacket: fiberglass braid with high temperature finish

Application:

Used for internal wiring of housedhold ovens, appliances, lighting fixtures and electronic equipment

as high temperature lead wire.

500deg.C mica wrapped fiberglass braided high temperature wire
Size	Conductor	Insulation Thickness	Braid Thickness	Diameter
AWG	Structure	(mm)	(mm)	(mm)
24	7/0.2	≥0.4	≥0.18	1.8±0.2
22	7/0.254			2.0±0.2
20	10/0.254			2.2±0.2
18	16/0.254			2.4±0.2
16	26/0.254			2.7±0.2
14	41/0.254			3.1±0.2
12	65/0.254			3.8±0.2
10	103/0.254	≥0.51	≥0.38	4.7±0.2
8	163/0.254	≥0.51	≥0.38	6.1±0.2
