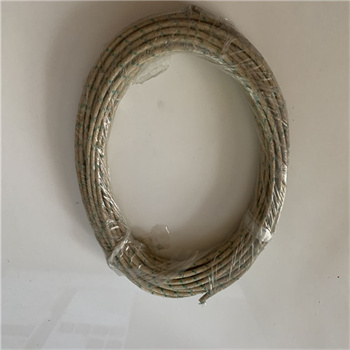

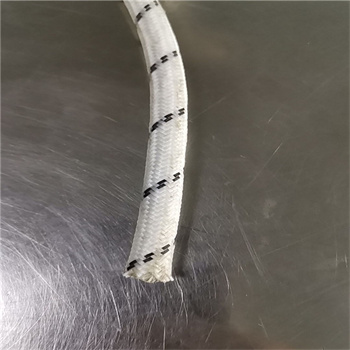

Boiler application High temperature Wire 350 degrees

Sent E-mail INQUIRY

DETAILS

Model: GN500-01

Product Features:

1, Rated voltage: 300-350V

2, Working temperature: -60 ~ + 450 ℃

3, Conductor: stranded nickel-plated copper wire

4, Insulation: fiberglass weave + fluorine gold mica

5, Color: Red / yellow / blue / white / black / green and yellow / brown / orange / purple / green / etc.

Applications:

Fixed laying, plus flame burning, no harmful toxic gases.

This product is a variety of electrical devices metallurgical, thermal, oil, chemicals, natural gas, kerosene and other special circumstances, where fire performance is required.

Boiler application High temperature Wire 350 degrees
Nominal area(mm2)	Conducotr construction	Nominal insulation thickness	Nominal OD	Maximum DC Resistance at 20℃	Packing length
（mm2）	Strand/Diameter(mm)	（mm）	（mm）	（Ω/km）	（m）
0.5	7×0.30	0.5	2.3±0.3	40.8	200
0.75	11×0.30	0.5	2.5±0.3	24.3	200
1	14×0.30	0.5	2.6±0.3	20	200
1.5	21×0.30	0.5	2.9±0.3	12.6	100
2	28×0.30	0.6	3.3±0.5	9.84	100
2.5	35×0.30	0.6	3.6±0.5	7.37	100
4	56×0.30	0.8	4.7±0.5	4.83	100
6	84×0.30	0.8	5.5±0.5	3.26	100
10	84×0.40	0.8	6.6±0.5	1.8	100
16	228×0.30	0.8	7.8±0.5	1.31	100
16	126×0.40	0.8	7.8±0.5	1.31	100
25	196×0.40	0.8	9.5±0.5	0.758	100
25	361×0.30	0.8	9.5±0.5	0.758	100
35	494×0.30	1	11.2±1.0	0.548	100
50	396×0.40	1.2	13.2±1.0	0.384	100
50	703×0.30	1.2	13.2±1.0	0.384	100
70	551×0.40	1.2	15.4±1.0	0.289	100
70	988×0.30	1.2	15.4±1.0	0.289	100
95	760×0.40	1.2	17.4±1.0	0.205	100
Noted:Other sizes and colours available on request
