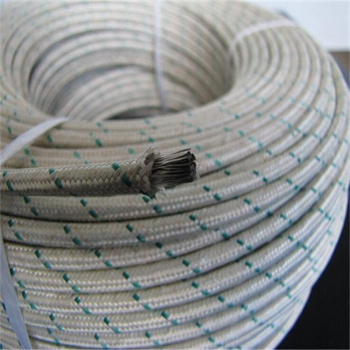

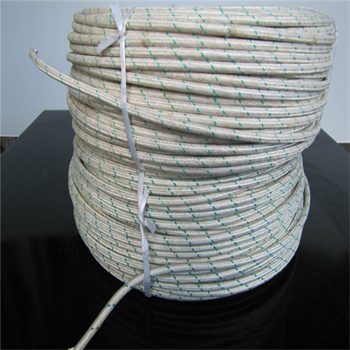

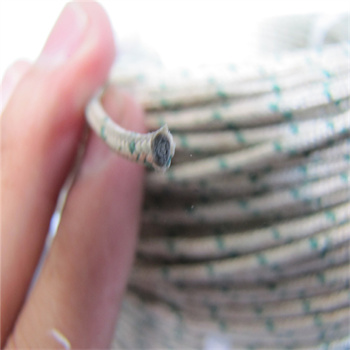

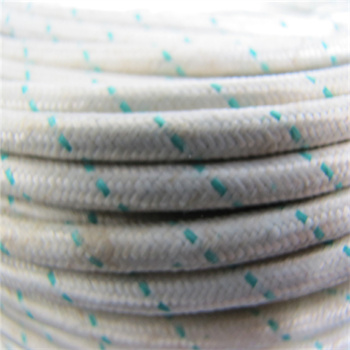

Nickel Core mica tape fibergalss braided High temperature resistant cable 350 degree

Sent E-mail INQUIRY

DETAILS

TECNICAL DATA

Condutor: Nickel Copper

Temperature range:-60℃~+500℃

Rated Voltage: 500V

O.D.Tolerance: ±0.1mm

Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green

Used for electric heating,petrochemical,electrical and mechanical equipment,power plant,drying pathdrying room,heating source for lighting,electric appliances and other high temperature areas.

High temperature Wire 350 degrees
Nominal area(mm2)	Conducotr construction	Nominal insulation thickness	Nominal OD	Maximum DC Resistance at 20℃	Packing length
（mm2）	Strand/Diameter(mm)	（mm）	（mm）	（Ω/km）	（m）
0.5	7×0.30	0.5	2.3±0.3	40.8	200
0.75	11×0.30	0.5	2.5±0.3	24.3	200
1	14×0.30	0.5	2.6±0.3	20	200
1.5	21×0.30	0.5	2.9±0.3	12.6	100
2	28×0.30	0.6	3.3±0.5	9.84	100
2.5	35×0.30	0.6	3.6±0.5	7.37	100
4	56×0.30	0.8	4.7±0.5	4.83	100
6	84×0.30	0.8	5.5±0.5	3.26	100
10	84×0.40	0.8	6.6±0.5	1.8	100
16	228×0.30	0.8	7.8±0.5	1.31	100
16	126×0.40	0.8	7.8±0.5	1.31	100
25	196×0.40	0.8	9.5±0.5	0.758	100
25	361×0.30	0.8	9.5±0.5	0.758	100
35	494×0.30	1	11.2±1.0	0.548	100
50	396×0.40	1.2	13.2±1.0	0.384	100
50	703×0.30	1.2	13.2±1.0	0.384	100
70	551×0.40	1.2	15.4±1.0	0.289	100
70	988×0.30	1.2	15.4±1.0	0.289	100
95	760×0.40	1.2	17.4±1.0	0.205	100
Noted:Other sizes and colours available on request
