Silicone cables are halogen-free cables and are especially suited
for installation in power stations. They have also found their uses in the steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories.
Due to elastical characteristic of core insulations, these are used as flexible connection cable.
multi core, fibreglass braided silicone cable
Cable structure
Conductor: Flexible copper conductors according to IEC 228 class 5. Available in bare, tin or nickel plated copper.
Insulation: Silicone rubber.
Sheath: Silicone rubber.
Braid: Fibreglass braid
Working Voltage : 300/ 500 V. Test Voltage : 2000 V.
Characteristics of cable
Continuous working temperature :
-60°C to +200°C. Peaks at +220°C
Minimum bending radius approx 15 x Cable Ø
Resistance to sunlight.
Halogen-free.
Does not spread flame.

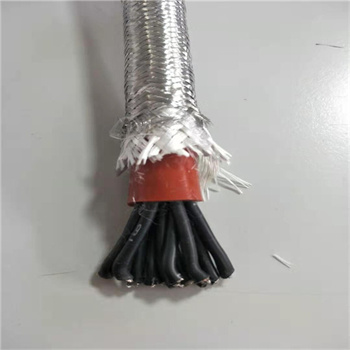

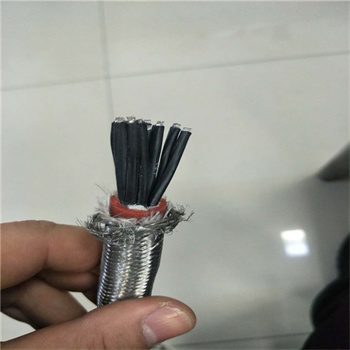

SIHF-GLP model SiHF/GL-P silicone mulitcore cable, steel braiding, halogen- free
Cable Size (mm2) | Conductor | Cable OD(mm) | Copper weight (KG/KM) | Cable Weight (KG/KM) |
2 x 1,5 | 30 x 0,26 | 8,2 | 69 | 103 |
3 x 1,5 | 30 x 0,26 | 8,6 | 85 | 128 |
4 x 1,5 | 30 x 0,26 | 9,4 | 103 | 158 |
5 x 1,5 | 30 x 0,26 | 10,2 | 127 | 188 |
7 x 1,5 | 30 x 0,26 | 11,2 | 162 | 250 |
12 x 1,5 | 30 x 0,26 | 15,4 | 253 | 433 |
3 x 2,5 | 50 x 0,26 | 10,3 | 127 | 189 |
4 x 2,5 | 50 x 0,26 | 11,4 | 153 | 249 |
5 x 2,5 | 50 x 0,26 | 12,4 | 184 | 293
|
