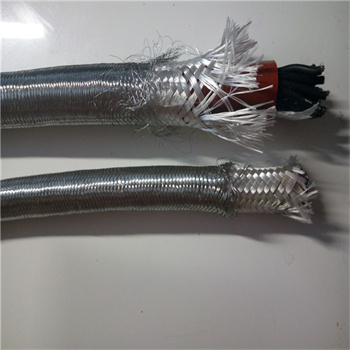

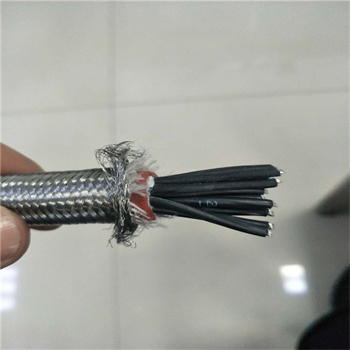

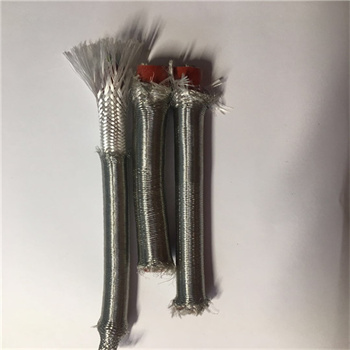

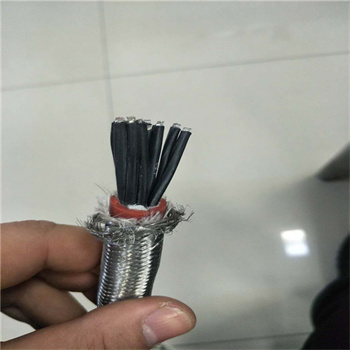

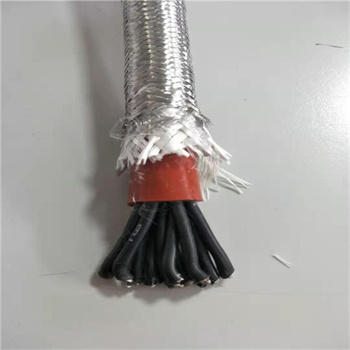

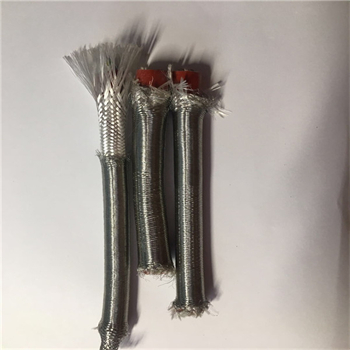

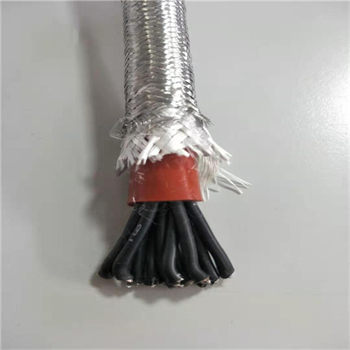

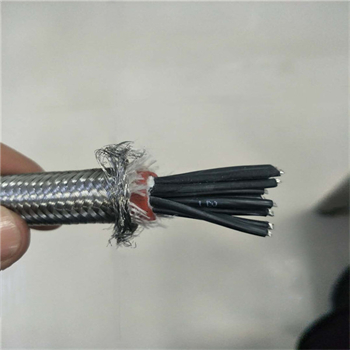

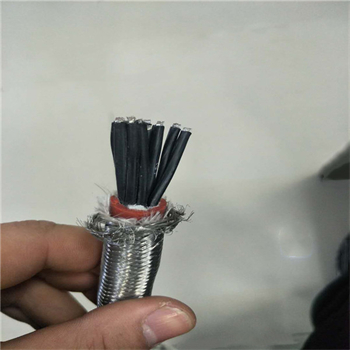

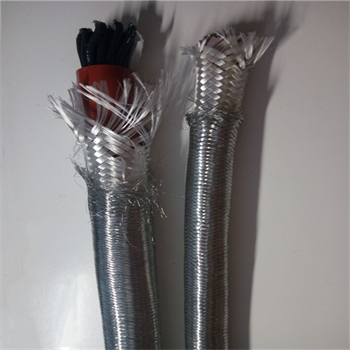

SIHF-C halogen-free copper braided screen silicone mulitcore cable

DETAILS

Cable structure

Conductor: Flexible copper conductors according to IEC 228 class 5.

Available in bare, tin or nickel plated copper.

Insulation: Silicone rubber.

Sheath: Silicone rubber.

Braid: Fibreglass braid

Working Voltage : 300/ 500 V. Test Voltage : 2000 V.

Characteristics of cable

Continuous working temperature :

-60°C to +200°C. Peaks at +220°C

Minimum bending radius approx 15 x Cable Ø

Resistance to sunlight.

Halogen-free.

Does not spread flame.

Application

Used to power electrical devices located in areas with high continuous temperatures.

Suitable for wiring in metal industry

Lighting equipment

Electrical approved devicesrequiring a non - flammable cable.

Hot-rolling mills, coking plants, foundries.

Resistant to: Resistant to vegetable and animal fat, many types of oil and diluted acids.

No decomposition occurs when exposed to alcohol, alkaline solutions. Resistant to oxygen and ozone.

multi core, halogen-free silicone cable
Cable Size (mm2)	Conductor structure (No./mm)	Cable OD(mm)	Copper weight (KG/KM)	Cable Weight (KG/KM)
2 x 1,5	30 x 0,26	7,6	30,0	97,0
3 x 1,5	30 x 0,26	8,0	45,0	117,0
4 x 1,5	30 x 0,26	8,8	60,0	145,0
5 x 1,5	30 x 0,26	9,6	75,0	175,0
7 x 1,5	30 x 0,26	10,9	105,0	220,0
12 x 1,5	30 x 0,26	14,6	180,0	413,0
16 x 1,5	30 x 0,26	16,2	240,0	520,0
24 x 1,5	30 x 0,26	20,4	360,0	811,0
