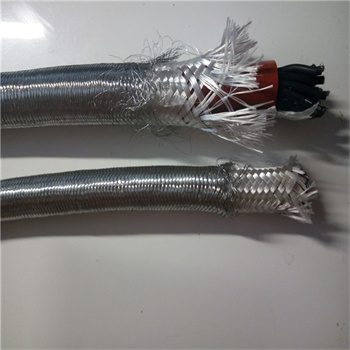

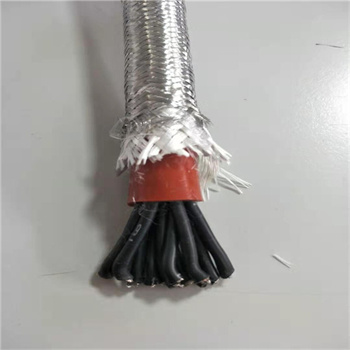

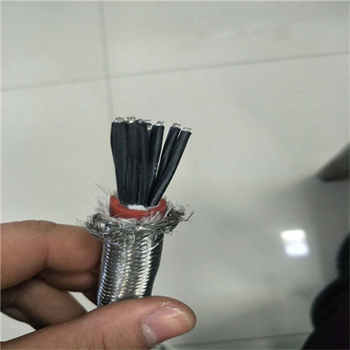

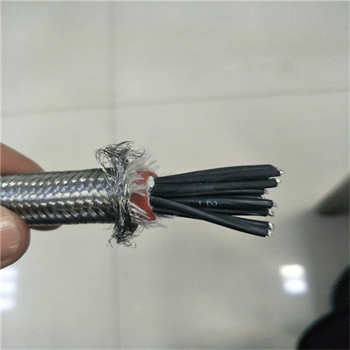

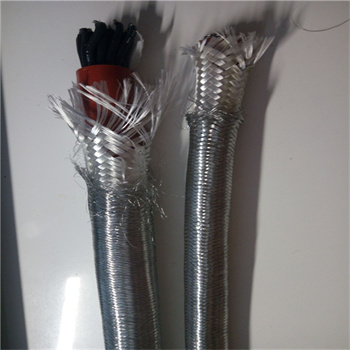

Cable structure
Conductor: Flexible copper conductors according to IEC 228 class 5. Available in bare, tin or nickel plated copper.
Insulation: Silicone rubber.
Sheath: Silicone rubber.
Braid: Fibreglass braid
Working Voltage : 300/ 500 V. Test Voltage : 2000 V.
Characteristics of cable
Continuous working temperature :
-60°C to +200°C. Peaks at +220°C
Minimum bending radius approx 15 x Cable Ø
Resistance to sunlight.
Halogen-free.
Does not spread flame.
Application
Used to power electrical devices located in areas with high continuous temperatures.
Suitable for wiring in metal industry
Lighting equipment
Electrical approved devicesrequiring a non - flammable cable.
Hot-rolling mills, coking plants, foundries.
Resistant to: Resistant to vegetable and animal fat, many types of oil and diluted acids.
No decomposition occurs when exposed to alcohol, alkaline solutions. Resistant to oxygen and ozone.
fibreglass braided multi core silicone cable Halogen-free
| Cable Size (mm2) | Conductor | Cable OD (mm) | Copper weight (KG/KM) | Cable Weight (KG/KM) |
| structure (No./mm) | ||||
| 2 x 1,5 | 30 x 0,26 | 8,2 | 69 | 103 |
| 3 x 1,5 | 30 x 0,26 | 8,6 | 85 | 128 |
| 4 x 1,5 | 30 x 0,26 | 9,4 | 103 | 158 |
| 5 x 1,5 | 30 x 0,26 | 10,2 | 127 | 188 |
| 7 x 1,5 | 30 x 0,26 | 11,2 | 162 | 250 |
| 12 x 1,5 | 30 x 0,26 | 15,4 | 253 | 433 |
| 3 x 2,5 | 50 x 0,26 | 10,3 | 127 | 189 |
| 4 x 2,5 | 50 x 0,26 | 11,4 | 153 | 249 |
| 5 x 2,5 | 50 x 0,26 | 12,4 | 184 | 293 |
