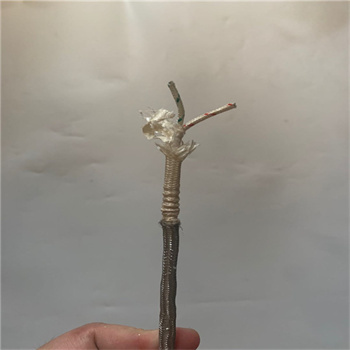

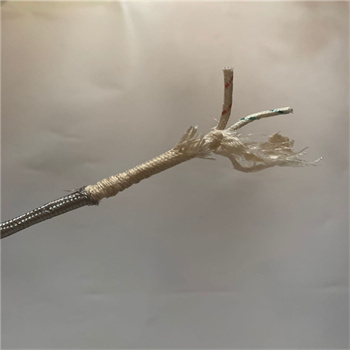

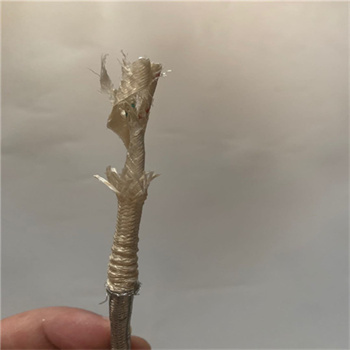

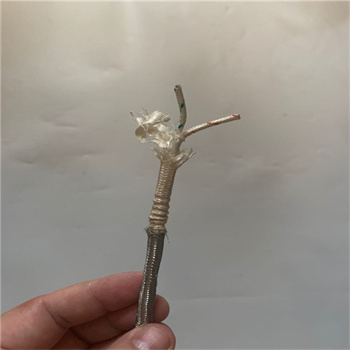

nickel plated copper wire Stainless steel braided High temperature resistant cable GN500-02-P

DETAILS

TECNICAL DATA

Condutor: Nickel Copper

Temperature range:-60℃~+500℃

Rated Voltage: 500V

O.D.Tolerance: ±0.1mm

Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green

Used for electric heating,petrochemical,electrical and mechanical equipment,power plant,drying pathdrying room,

heating source for lighting,electric appliances and other high temperature areas.

nickel plated copper wire Stainless steel braided High temperature resistant cable GN500-02-P

Sectional Area (mm²)	Condutor Construction (mm)	Insulation Thickness (mm)	Outer Diameter (mm）	Max.Condutor Resistance DC20℃ （Ω/KM	Packing (m)
0.5	7×0.30	0.5	2.6±0.3	40.8	200
0.75	11×0.30	0.5	2.7±0.3	24.3	200
1	14×0.30	0.5	2.8±0.3	20.0	200
1.5	21×0.30	0.5	3.0±0.3	12.6	100
2	28×0.30	0.6	3.3±0.5	9.84	100
2.5	35×0.30	0.6	3.6±0.5	7.37	100
4	56×0.30	0.8	4.7±0.5	4.83	100
6	84×0.30	0.8	5.5±0.5	3.26	100
10	84×0.40	0.8	6.6±0.5	1.80	100
16	228×0.30	0.8	7.8±0.5	1.31	100
16	126×0.40	0.8	7.8±0.5	1.31	100
25	196×0.40	0.8	9.5±0.5	0.758	100
25	361×0.30	0.8	9.5±0.5	0.758	100
35	494×0.30	0.8	11.2±1.0	0.548	100
50	396×0.40	1.2	13.2±1.0	0.384	100
50	703×0.30	1.2	13.2±1.0	0.384	100
70	551×0.40	1.2	15.4±1.0	0.289	100
70	988×0.30	1.2	15.4±1.0	0.289	100
95	760×0.40	1.2	17.4±1.0	0.205	100
