Ni-Cu Stainless steel braided High temperature resistant cable GN500-02-P

Sent E-mail INQUIRY

DETAILS

1) Rated Voltage: 300V/500V

2) Rated Temperature: -60degree to 450degree

3) Conductor: Nickel Copper, Nickel

4) Insulator: Fiber Glass, High Temperature Coating

5)Shield:Steel Stainless wire

Used for electric heating,petrochemical,electrical and mechanical equipment,power plant,drying pathdrying room,heating source for lighting,electric appliances and other high temperature areas.

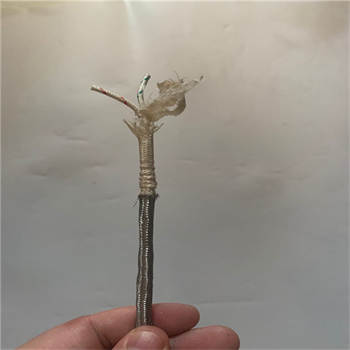

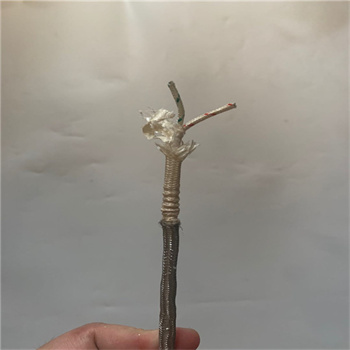

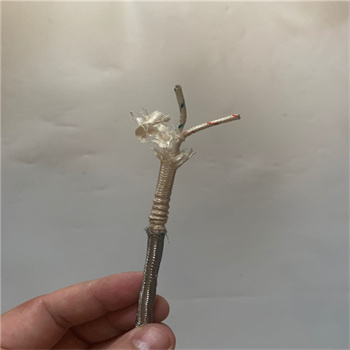

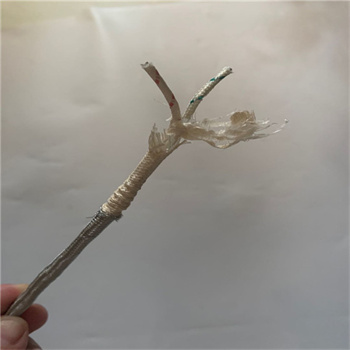

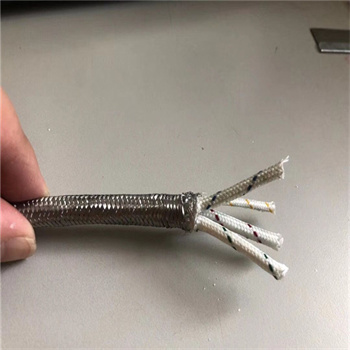

Ni-Cu Stainless steel braided High temperature resistant cable GN500-02-P Operate Temperature: -60degree to 450degree Cable Construction: nickel plated copper wire + glass fiber + mica + glass fiber+Stainless steel braided
AWG Size	Conductor Structure	Insulation Thickness mm	Braid Thickness mm	Diameter mm	Ref.	Ref.
					weight	weight
					kg/1000ft	kg/km
24	7/0.20	≥0.63	≥0.18	2.3±0.20	2.7	9.1
22	7/0.254	≥0.63	≥0.18	2.4±0.20	3.6	12.2
20	10/0.254	≥0.63	≥0.18	2.6±0.20	4.5	14.9
18	16/0.254	≥0.63	≥0.18	2.8±0.20	5.5	18.1
16	26/0.254	≥0.63	≥0.18	3.2±0.20	7.3	24.2
14	41/0.254	≥0.63	≥0.18	3.6±0.20	10.4	34.5
12	65/0.254	≥0.63	≥0.18	4.2±0.20	14.1	46.3
10	103/0.254	≥0.76	≥0.38	5.2±0.20	23.6	77.6
8	163/0.254	≥0.76	≥0.38	6.6±0.20	35.4	116.2
