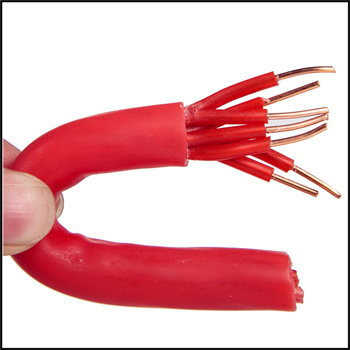

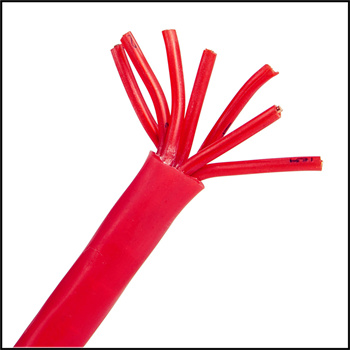

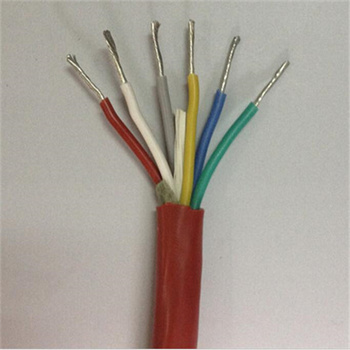

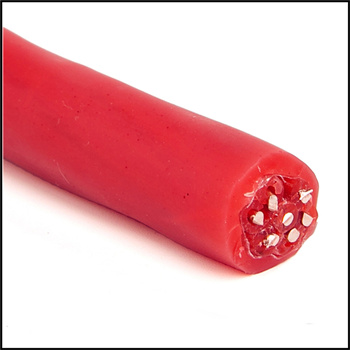

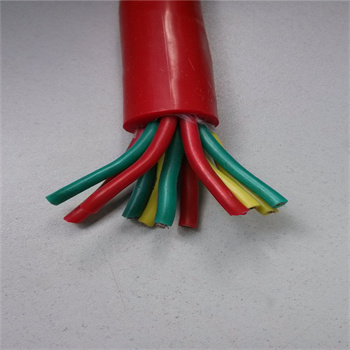

KGG KGGRP KGGP YGG-silicone rubber cables AC rated voltage 450 / 750V

    Jacket:Silicone Rubber
    Insulator: Silicone Rubber
    Conductor:Tinned Copper
    Temperature Range:-60℃~+200℃
    Rated Voltage:300V/500V
DETAILS


This product is suitable for AC rated voltage 450 / 750V, mobile or fixed installation.

Long-term allowable operating temperature of the cable is + 180 ℃ below allow for less than -60 ℃ ambient

temperature range.



Features:

soft cable performance, high temperature corrosion resistance, voltage and other advantages.

Silicone rubber cable Model: KGG, KGGP specifications and reference data

Heat-resistant silicone rubber control cable

This product is applicable to the control and monitoring circuit of rated voltage 450 / 750V and below in high temperature

industry, such as steel, smelting, power plant, coking plant, aviation, metallurgy machinery and petrochemical industry.

It has excellent resistance to high temperature, flame retardant, radiation resistance, aging resistance, ozone resistance,

 water and other characteristics of a good cold resistance, weather resistance.



First, the implementation of standards

Using QB / T341181-0095

Second, the use of conditions

1. Operating temperature -50 ℃ ~ 180 ℃ Recommended bending radius of not less than 6 times the cable diameter

2. Has excellent oxygen resistance, ozone resistance, resistance to ultraviolet radiation, long-term use in the outdoor

does not crack

3. Has excellent electrical properties, resistance to arc and arc resistance is also very good

4. Have excellent physical and mechanical properties, in 150 ℃ high temperature, its mechanical properties far superior

 to general-purpose rubber cable, has good chemical resistance, resistance to fuel oil and oil properties.

5. Odorless, tasteless, non-toxic, with low surface activity and low moisture absorption properties.

Third, the silicone rubber cable model name and scope of use



model,name,The main scope of use

KGG

Copper core silicon rubber insulated silicon rubber sheathed control cable

Laying indoors, cable trench, pipe fixed occasion

KGGP

Copper core silicon rubber insulated silicon rubber sheathed braided shielded control cable

Laying in the indoor, cable trenches, pipes and other shielding requirements of a fixed occasion

KGGP2

Copper core silicon rubber insulated silicon rubber sheathed copper tape shielded control cable

KGG22

Copper core silicone rubber insulated silicon rubber sheathed steel strip shield control cable

Laying indoors, cable trench, pipe, buried, etc. can withstand a larger mechanical tension and other fixed occasions

KGG32

Copper core silicon rubber insulated silicon rubber sheathed fine steel wire armored control cable

Laying indoors, cable trench, pipe, shaft and so can withstand greater mechanical tension and other fixed occasions

KGGR

Copper core silicon rubber insulated silicon rubber sheathed control flexible cable

Laying in the indoor movement requirements of soft and so on

KGGRP

Copper core silicon rubber insulated silicon rubber sheathed braided shield control flexible cable

Laying in the indoor movement requirements of soft, shielding and other occasions
