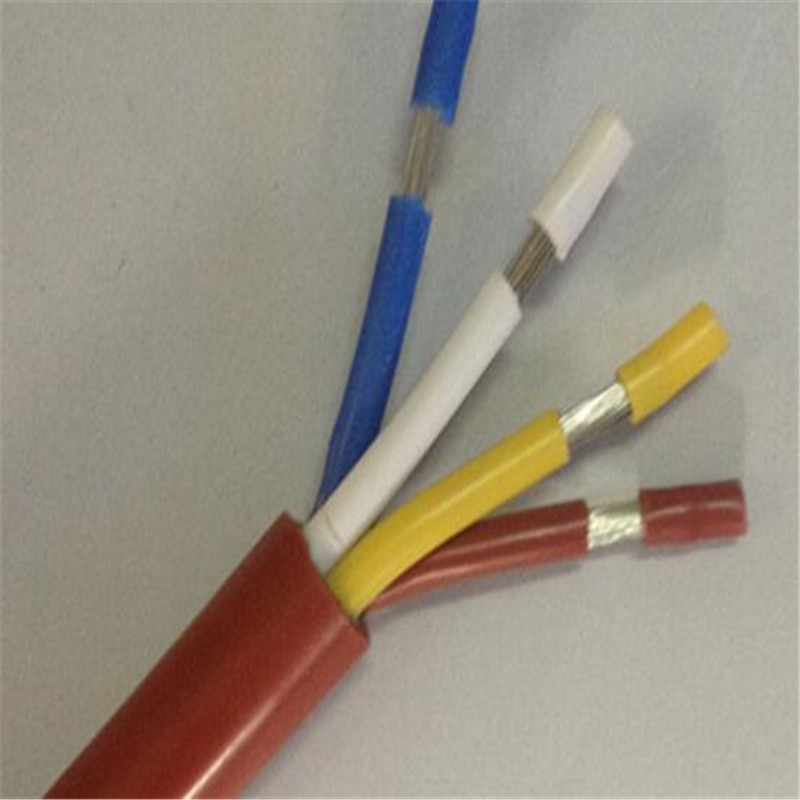

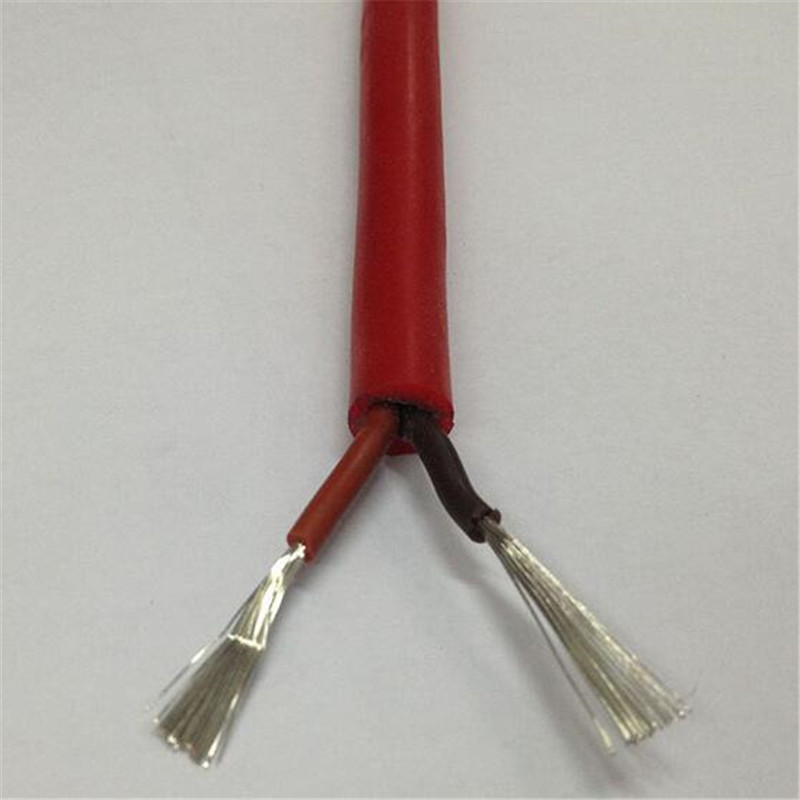

YGZ/YGZP MULTI-CORE Silicone Rubber HIGH TEMPERATURE CABLE
TECHNICAL DATA
Jacket:Silicone Rubber
Insulator: Silicone Rubber
Conductor:Tinned Copper
Temperature Range:-60℃~+200℃
Rated Voltage:300V/500V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-red-Black-Yellow-Green-Transparent-Yellow/Green
Application
Used at AC rated voltage 300V/500V or below with various movable electric
machines,steel plant,aviation,power plant pertrochemical industry and outdoor lighting of high temperature area.
YGZ/YGZP MULTI-CORE Silicone Rubber HIGH TEMPERATURE CABLE
Corenumber Section (MM²) | Conductor Construction | Insulation Thickness (mm) |
Core number | Max.Conductor Resistance DC20℃ (Ω/KM)
| Packing (m) |
0.2 | 7/0.20 | 0.4 |
Below 37
| 94.0 | 200 |
0.3 | 16/0.15 | 0.5 | |||
0.5 | 28/0.15 | 0.6 | 40.1 | 200 | |
0.75 | 24/0.2 | 0.6 | |||
1.0 | 32/0.2 | 0.6 | 20.0 | 100 | |
1.5 | 48/0.2 | 0.6 | |||
2.5 | 49/0.25 | 0.7 | 8.21 | 100 |
