GN500-03-P Nickel Stainless steel braided High temperature resistant cable
Operate temperature: -60degree to+600degree

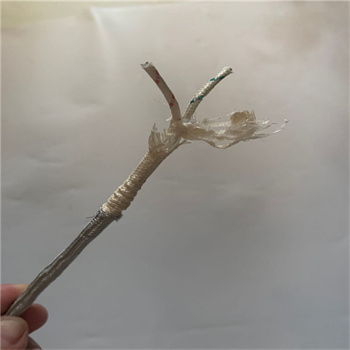

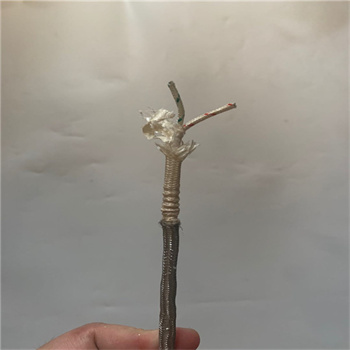

Cable Construction: pure nickel wire + glass fiber + mica + glass fiber+Stainless steel braided
1) Rated Voltage: 300V/500V
2) Rated Temperature:-60degree to+600degree
3) Conductor: Nickel
4) Insulator: Fiber Glass, High Temperature Coating
5)Shield:Steel Stainless wire
Used for electric heating,petrochemical,electrical and mechanical equipment,power plant,drying pathdrying room,
heating source for lighting,electric appliances and other high temperature areas.
GN500-03-P Nickel Stainless steel braided High temperature resistant cable
Cable type | Conductor construction | Insulation Thickness (mm) | Shielding Density% | OD(mm) | Max DC Resis at 20℃（Ω/km） | Control of hazardous |
3*0.75 | 24/0.20 | 0.6±0.1 | >85 | 6.0±0.3 | 26.7 | Meet ROHS instructions |
3*1.0 | 32/0.20 | 0.6±0.1 | 6.3±0.3 | 20 | ||
3*1.5 | 30/0.25 | 0.65±0.1 | 7.2±0.3 | 13.7 | ||
3*2.5 | 50/0.25 | 0.7±0.1 | 8.4±0.3 | 8.21 |
