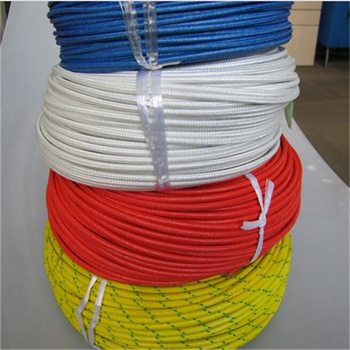

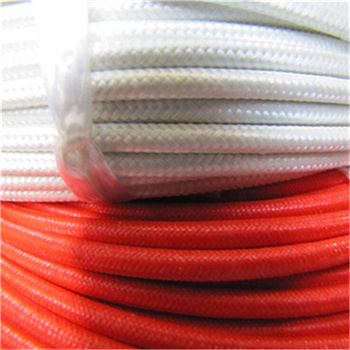

UL3068 SILICONE RUBBER FIBERGLASS BRAIDED WIRE

DETAILS

TECNICAL DATA

Insulation:Fiberglass+silicone

Insulation:Silicone Rubber

Condutor:Tinned Copper

Temperature range:-60℃~+150℃

Rated Voltage:300V

O.D.Tolerance: ±0.1mm

Colour:White-Blue-Red-Black-Yellow-Green-Transparent

-Yellow/Green

Used for heating source for lighting,electric machinery,air conditioning,oven,drying path,auto ignition appliance etc.

UL3068 SILICONE RUBBER FIBERGLASS BRAIDED WIRE

AWG	Condutor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness s(mm)	Outer Diameter (mm)	Max. conductor Resistance DC20℃ （Ω/㎞）	Packing (m)
16	7×0.50	0.39	0.15	2.58	14.6	305
17	32×0.20	0.39	0.15	2.42	18.3	305
18	7×0.40	0.39	0.15	2.28	23.2	305
20	7×0.32	0.39	0.15	2.04	36.7	305
22	7×0.26	0.39	0.15	1.86	59.4	610
24	7×0.20	0.39	0.15	1.68	94.2	610
26	7×0.16	0.39	0.15	1.56	150	610
28	7×0.12	0.39	0.15	1.14	239	610
30	7×0.10	0.39	0.15	1.08	381	610
