Thermonuclear Wire that is used in a thermocouple from the point of sensing to the point of cold junction compensation
(cjc end)
where the signal is measured.
A thermocouple is a sensor for measuring temperature, that consists of two dissimilar metals that are joined together

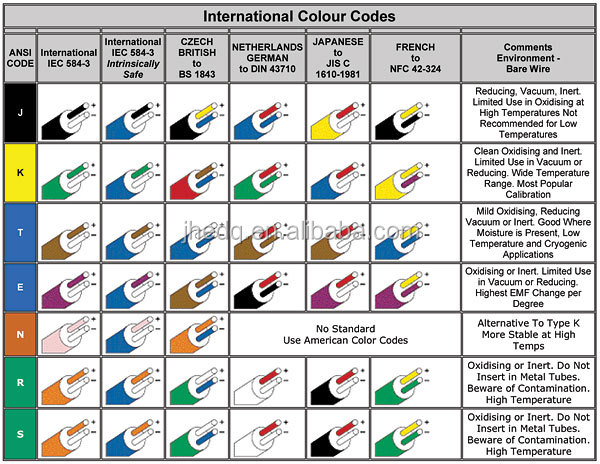

at the sensing end. Different thermocouple types (e. G. J, K, T, E, etc)
use different mixtures of metals in the wire. At the cjc end, the millivolt value provided by the thermocouple represents
the difference in temperature of the sensing end as compared to the cjc end (also called the reference end).

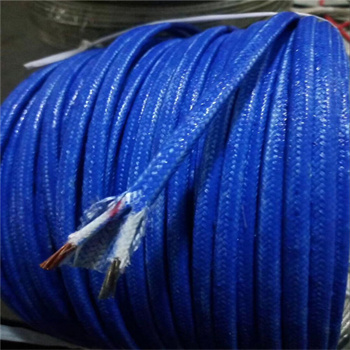

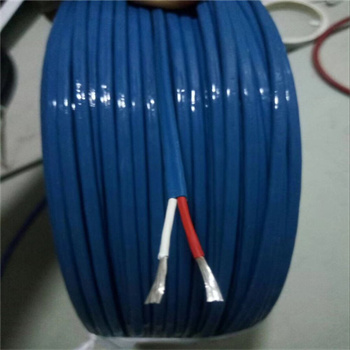

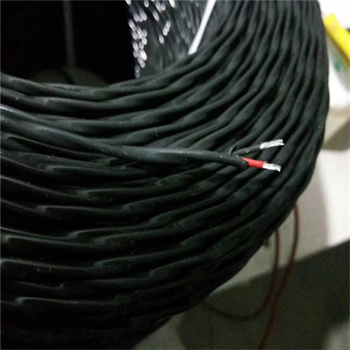

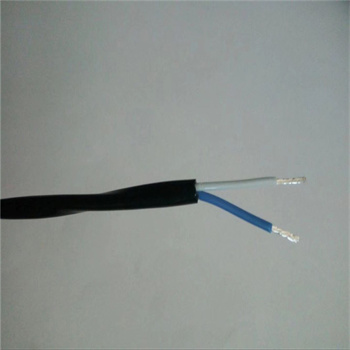

Solid or stranded conductor thermocouple extension cable (type JX/ KX/ EX/ TX )
thermocouple compensation cable | |
Grade: | Extension Grade or Thermocuple Grade |
temperature range, deg. c | -50 to +400 |
type of coductor: | K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX |
number of conductors: | 1,2,3,4,6 |
Conductor type | Strand or Solid |
material of insulation: | fiberglass, telfon, PTFE, PVC, silicone,so on |
material of jacket: | fiberglass, telfon, PTFE, PVC, silicone,so on |
shielding material: | Stainless Steel Braid and Tinned Copper wire braid |
Solid or stranded conductor thermocouple extension cable (type JX/ KX/ EX/ TX
Thermocouple cable | ||||
Type | Conductor | Grade | Working temperature | |
Insulation material | deg.C | |||
S | Cu, Ni-Cu | A | PVC | -25~70C |
B | ||||
R | Cu, Ni-Cu | A | Silicone | -60~200C |
B | ||||
K | Cu, Ni-Cu/ | A | Telfon | -60~250C |
Ni-Cr, Ni-Si | B | |||
N | Cu, Ni-Cu/ | A | Fiberglass | -60~500C |
Ni-Cr, Ni-Si | B | |||
E | Ni-Cr,Ni-Cu | A | Kapton | -60-300C |
B | ||||
J | Iron,Ni-Cu | A | ||
B | ||||
T | Cu, Ni-Cu | A | ||
B | ||||
RELATED
-
KC/KX/SC fiberglass/silicone/telfon/PVC thermocouple compensation/extension cable/wire
-
K model Thermocouple cable -40degree to+1300degree
-
J model thermocouple extension cables -40degree to+750degree
-
K and J model Thermocouple cable
