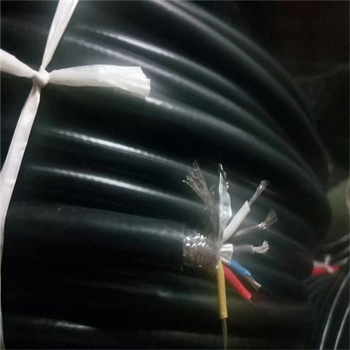

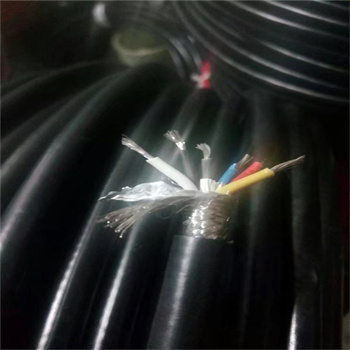

Silicone Shielded Double Jacket Multi-Core Cable

DETAILS

Standards:

DIN VDE 0295, BS 6360, IEC 60228

Construction:

conductor:fine-stranded tinned or bare copper

insulation:silicone rubber

screen:tinned copper braiding;coverage is more than 85%

sheath:silicone rubber

Rated voltage: 300/500 V

Test voltage: 2000 V

Technical parameters

Temperature range: -60degreeto +180degree

Short time temp up to +220degree

Temperature limit at the conductor

in operation +180degree

Insulation resistance :min. 200 MΩ x km

Minimum bending radius: flexing 10 x cable Ø

5 x cable Ø

Coupling resistance:max. 250Ω/km

Radiation resistance: up to 20x106 cJ/kg (up to 20 Mrad)

Feature

Resistant to High molecular oils, fats from vegetables and animals, alcohols, plasticizers

and clophenes, diluted acids, lye and salt dissolution,

oxidation substances, tropical influences and weather, lake water, oxygen and UV Halogen-free

Silicone Shielded Double Jacket Multi-Core Cable
Cable Size (mm2)	Conductor structure (No./mm)	Cable OD(mm)	Copper weight (KG/KM)	Cable Weight (KG/KM)
2 x 0,75	24 x 0,21	7,0	45	72
3 x 0,75	24 x 0,21	7,4	53	88
4 x 0,75	24 x 0,21	8,4	64	114
5 x 0,75	24 x 0,21	9,1	77	135
7 x 0,75	24 x 0,21	9,8	95	166
2 x 1	32 x 0,21	7,2	50	79
3 x 1	32 x 0,21	8,0	63	105
4 x 1	32 x 0,21	8,7	79	129
5 x 1	32 x 0,21	9,4	90	150
7 x 1	32 x 0,21	10,1	113	189
