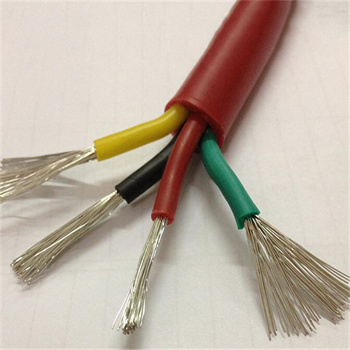

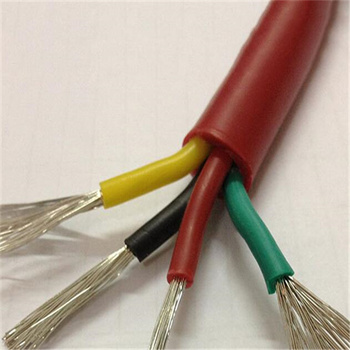

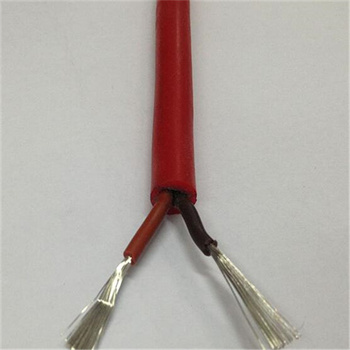

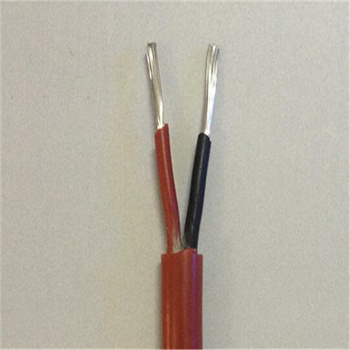

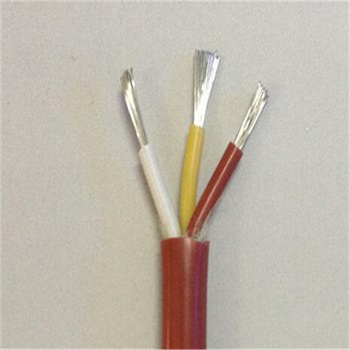

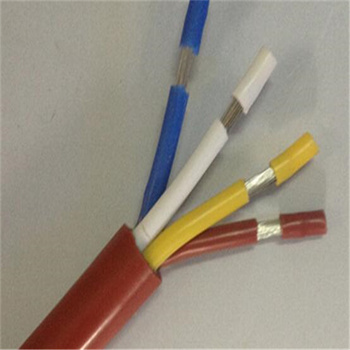

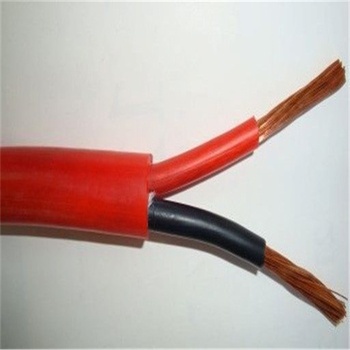

SIHF model Silicone Rubber Multi-Core Cable SiHF cable 0.6/1.0kV

DETAILS

Application

Silicone cables were evolved for use wherever insulation is subjected to extreme temperature changes.

They are heat-resistant for permanent temperature up to +180°C,

for short time operation up to +220°C.

The good performance of the environmental resistant properties means that silicone cables can be used at

temperatures down to -60°C.

Cable structure

Conductor: Flexible tinned copper conductors to DIN VDE 0295 , BS 6360 and IEC 60228

Insulation: Silicone rubber.

Characteristics of cable

Continuous working temperature :

-60°C to +180°C. Max: at +220°C.

Minimum bending radius 7.5*OD

Resistance to sunlight.

Halogen-free.

Does not spread flame.

Working Voltage:300/500 V

Test Voltage:2000 V

multi core, halogen-free silicone cable
Cable Size (mm2)	Conductor structure (No./mm)	Cable OD(mm)	Copper weight (KG/KM)	Cable Weight (KG/KM)
2 x 2,5	50 x 0,26	9,2	50,0	146,0
3 x 2,5	50 x 0,26	9,7	75,0	179,0
4 x 2,5	50 x 0,26	10,6	100,0	222,0
5 x 2,5	50 x 0,26	11,6	125,0	268,0
7 x 2,5	50 x 0,26	12,6	175,0	339,0
12 x 2,5	50 x 0,26	17,1	300,0	609,0
multi core, halogen-free silicone cable
Cable Size (mm2)	Conductor structure (No./mm)	Cable OD (mm)	Copper weight (KG/KM)	Cable Weight (KG/KM)
2 x 4	50 x 0,31	10,8	80,0	210,0
3 x 4	50 x 0,31	11,5	120,0	261,0
4 x 4	50 x 0,31	13,2	160,0	346,0
5 x 4	50 x 0,31	14,3	200,0	418,0
7 x 4	50 x 0,31	15,6	280,0	530,0
4 x 6	84 x 0,31	15,6	240,0	497,0
5 x 6	84 x 0,31	17,6	300,0	631,0
4 x 10	80 x 0,41	19,1	400,0	778,0
4 x 16	128 x 0,41	23,4	640,0	1.197,0
4 x 25	200 x 0,41	28,6	1,000,0	1.827,0
