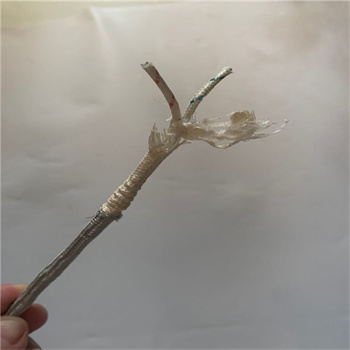

bare copper conductor Stainless steel braided High temperature resistant cable GN500-01-P
Operate temperature: -60degree to +350degree
Cable Construction: bare copper wire + glass fiber + mica + glass fiber+Stainless steel braided
Feature:
Rated temperature:-60℃~+500℃
Rated voltage:600V
Conductor: copper, tinned copper, nickel copper, nickel
Insulation: mica tape with fiberglass composite
Jacket: fiberglass braid with high temperature finish
Application:
Used for internal wiring of housedhold ovens, appliances, lighting fixtures and electronic equipment as high temperature lead wire.

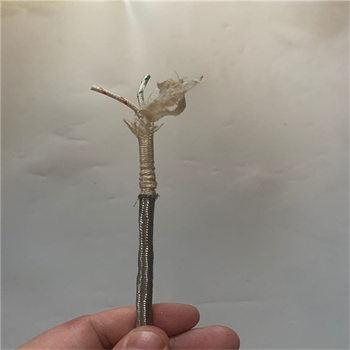

bare copper conductor Stainless steel braided High temperature resistant cable GN500-01-P
Size | Conductor | Insulation Thickness | Braid Thickness | Diameter |
AWG | Structure | (mm) | (mm) | (mm) |
24 | 7/0.2 | ≥0.4 | ≥0.18 | 1.8±0.2 |
22 | 7/0.254 | 2.0±0.2 | ||
20 | 10/0.254 | 2.2±0.2 | ||
18 | 16/0.254 | 2.4±0.2 | ||
16 | 26/0.254 | 2.7±0.2 | ||
14 | 41/0.254 | 3.1±0.2 | ||
12 | 65/0.254 | 3.8±0.2 | ||
10 | 103/0.254 | ≥0.51 | ≥0.38 | 4.7±0.2 |
8 | 163/0.254 | 6.1±0.2 |
