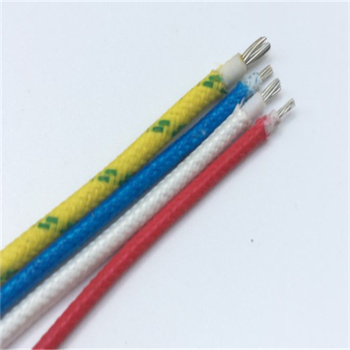

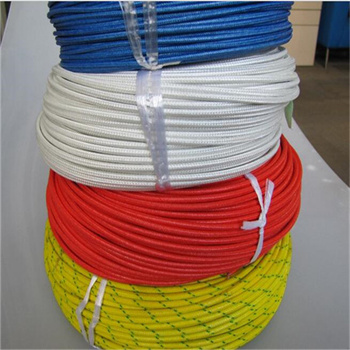

fiberglass braided silicone rubber insulation high temperature cable and wire -60degree to 180degree

DETAILS

fiberglass braided silicone rubber insulation high temperature cable and wire 300/500V -60degree to 180degree

TECNICAL DATA

Insulation:Fiberglass+silicone

Insulation:Silicone Rubber

Condutor:Tinned Copper

Temperature range:-60℃~+180℃

Rated Voltage:300V/500V

O.D.Tolerance: ±0.1mm

Colour:

White-Blue-Red-Black-Yellow-Green-Transparent-

Yellew/Green

Used for heating source for lighting,electric machinery,air conditioning,oven,drying path,auto ignition

appliance etc.

fiberglass braided silicone rubber insulation high temperature cable and wire 300/500V -60degree to 180degree

Sectional Area (mm2)	Condutor Construction (mm)	Insulation Thickness (mm)	PleachThick- ness(mm)	OuterDiameter (mm)	Max.conductor Resistance DC20℃（Ω/㎞）
0.20	12×0.15	0.50	0.15	1.80	95
0.30	16×0.15	0.50	0.15	2.00	71.2
0.40	23×0.15	0.50	0.15	2.20	49.6
0.50	28×0.15	0.50	0.15	2.20	40.1
0.75	42×0.15	0.50	0.15	2.50	26.7
1.0	32×0.20	0.50	0.15	2.70	20.0
1.2	40×0.20	0.50	0.15	2.80	15.9
1.5	48×0.20	0.55	0.15	3.00	13.7
2.0	40×0.25	0.60	0.15	3.40	9.90
2.5	49×0.25	0.65	0.15	3.70	8.21
4.0	56×0.30	0.65	0.20	4.40	5.09
6.0	84×0.30	0.70	0.20	5.40	3.39
10	84×0.40	0.80	0.20	6.80	1.95
16	126×0.40	1.20	0.25	8.90	1.24
25	196×0.40	1.20	0.25	10.50	0.795
35	494×0.30	1.80	0.25	13.00	0.565
50	396×0.40	1.80	0.30	14.80	0.393
70	551×0.40	1.80	0.30	17.00	0.277
95	760×0.40	2.20	0.30	19.60	0.210
120	608×0.50	2.20	0.35	21.00	0.164
150	756×0.50	2.20	0.35	23.10	0.132
185	925×0.50	2.40	0.40	25.60	0.108
240	1221×0.50	2.40	0.40	28.60	0.0817
300	1517×0.50	2.80	0.40	32.40	0.0654
